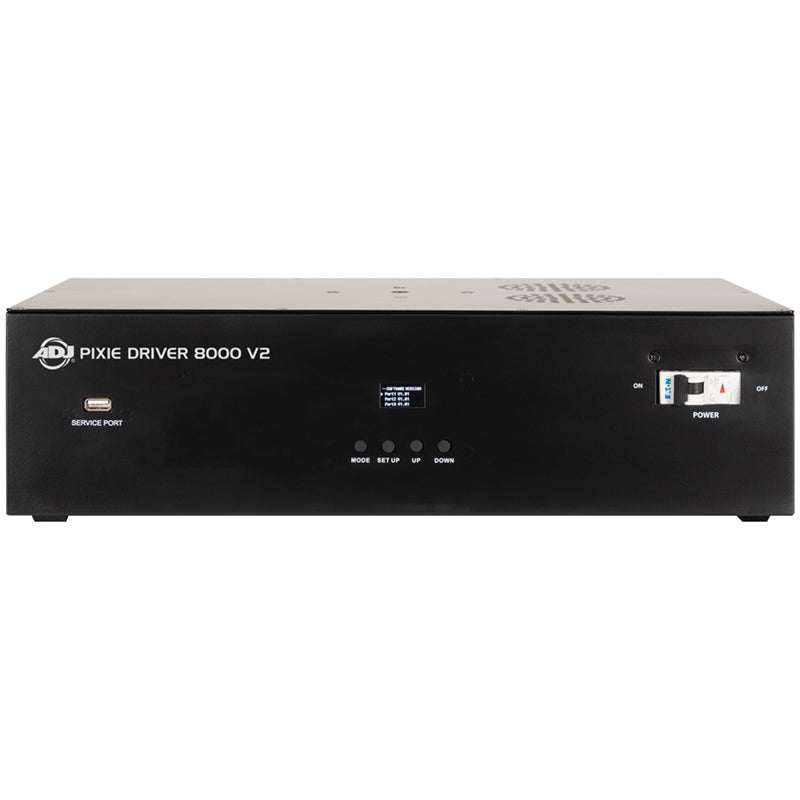

ADJ PIXIE DRIVER 8000 V2, Pixle Strip Driver, 8K, Kling net,Artnet

Pixie Driver 8000 V2 is designed specifically for the ADJ Pixie Strip Series. It provides easy and versatile control options including simple on-board manual dimming and strobe control, plus full pixel mapping control of 8,160 max pixels limitation (1020 pixels per port) via Art-Net or sACN (streaming ACN) protocols.

The Pixie Driver 8000 V2 features a universal auto switching power supply (100-240V), a 4-button LCD control menu display, locking RJ45 Ethernet in/out ports, (8) Pixie Strip outputs which use proprietary, 4-pin combo cables (sold separately) that supply power and data to each pixie strip (available in lengths from 2 to 50 feet (For additional details, see Accessories Sold Separately under the Specifications section). The Pixie Driver 8000 V2 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).

• Power / data supply for ADJ Pixie Strip 30, Pixie Strip 60, Pixie Strip 120 and Pixie Curve 60

• Manual RGB mode

• Internal programs

• Manual Dimming and Strobe Control

• Full Pixel Mapping Control

• Drives up to 8,160 Pixels via ArtNet or sACN (1,020 Pixels per port)

• OLED screen with 4-button menu

• USB port for Firmware Updates

Art-Net/sACN: max 34x Pixie Strip 30; 17x Pixie Strip 60 or Pixie Curve 60; 8x Pixie Strip 120 (Per port, or any combination not exceeding 1,020 pixels per port)

• Power: PowerLock Input

• Two locking RJ45 ports

• Eight 4-pin DC24V power/data outputs to Pixie Strips

• Bolt to add a clamp to hang from truss (clamp and truss not included)

• Includes 19-inch rack mount ears

• Safety eye

• Multi-voltage operation: AC 100-240V, 50/60Hz

• Power Consumption: 1,600W max

• -4°F to 113°F (-20°C to 45°C)

• Dimensions (LxWxH): 11.8" x 18.9" x 4.7" / 300.3x480x120mm

• Weight: 13.4 lbs. / 6.1 kg.

CE | cETLus (Pending)

(1) 10-foot Pixie Strip to Pixie Strip orPixie Driver to Pixie Strip link cable

(1) SIP20MPC (SIP293): Power Input cable

(2) 19" Rack Ears

PSLC1 (PIX158): 1-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable

PSLC3 (PIX174): 3-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable

PSLC5 (PIX188): 5-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable

PSLC10 (PIX200): 10-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable

PSLC15 (PIX213): 15-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable

PSLC25 (PIX229): 25-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable

PSLC50 (PIX242): 50-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
