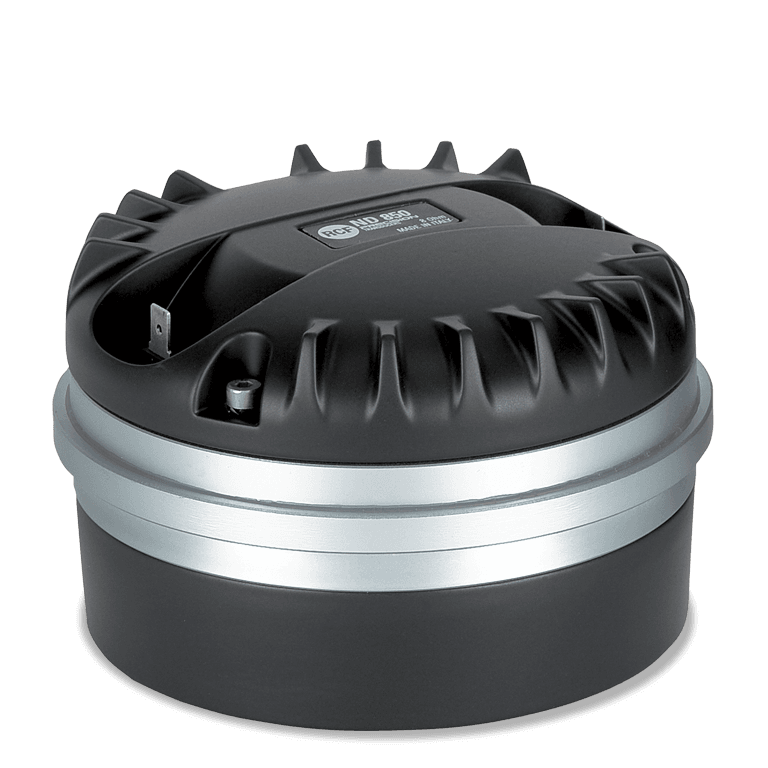

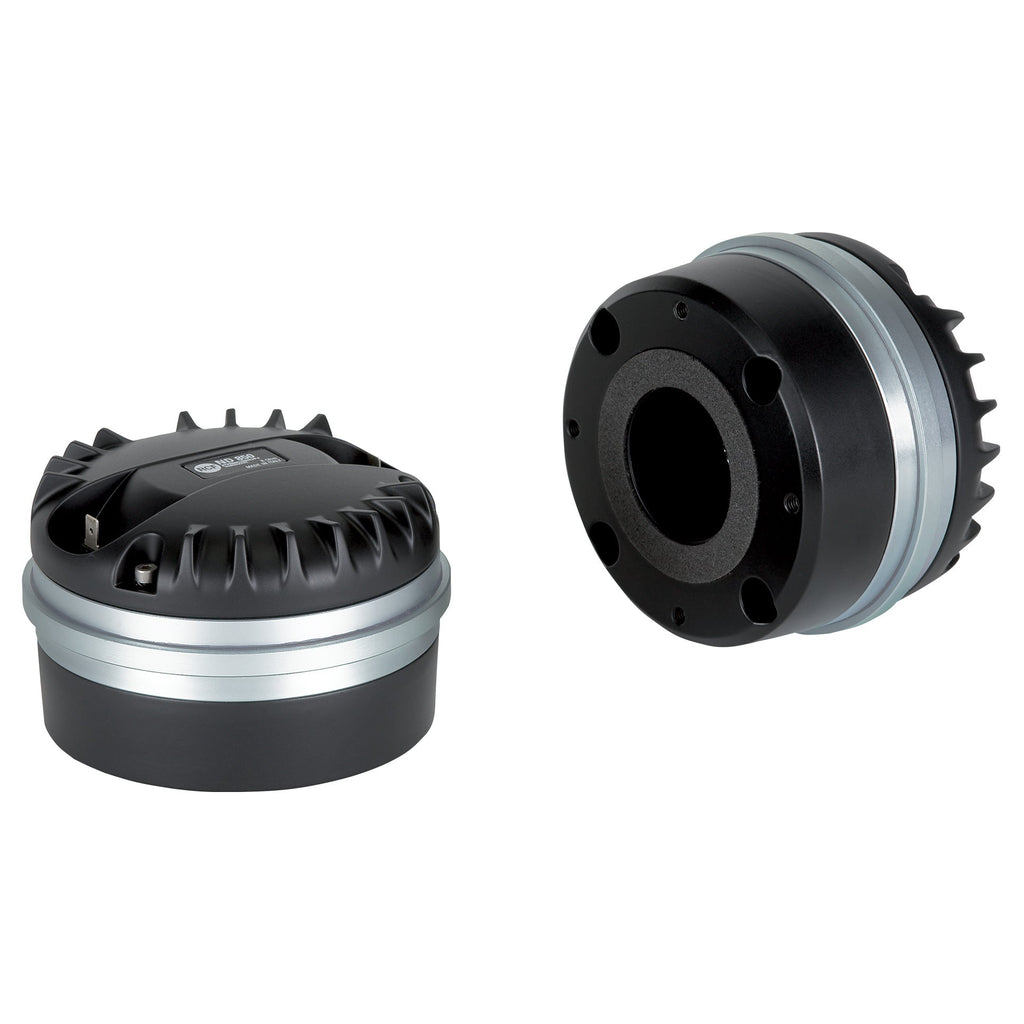

ND850 2.0 Driver

The ND850 2.0 is a high performance 3.0-inch diaphragm compression driver with a 2 inch exit throat featuring several state of the art technologies. The diaphragm are precision formed from pure titanium. The suspension is based on a vented and damped design in order to provide low distorsion. Voice coil assembly is designed using high temperature kapton former.

Features

  • 3-inch Diaphragm, 2-inch Exit Throat / Pure Titanium Compression Driver
  • 220W continuous program power handling
  • Frequency range: 500Hz - 20kHz
  • 3-slot optimized geometry phase plug
  • Titanium diaphragm
  • Copper inductance ring for extended response
  • Vented, damped, low distortion suspension system
  • Nedymium magnet assembly

Specifications

General specifications

Exit Throat Diameter 2.0 inch / 51 mm
Related Impedance 8 ohm
Program Power (watt) 220 W
Power handling capacity 110 W
Sensitivity 109 dB
Frequency range 500 - 20000 Hz
Diaphragm Material Pure Titanium
Suspension Material Polyester
Suspension Design Flat
Minimum Impedance (ohm) 8.50 ohm
Voice Coil Diameter 3.0 inch / 76 mm
Voice Coil Winding Material Edgewound Aluminum
Voice Coil Former Design Straight - Kapton
Number of layers 1
Kind of layers outside
Flux Density 2.0 T
Phase Plug Design 3 slot
Phase Plug Material Aluminum
Magnetics Neodymium
Voice Coil Demodulation Ring Copper

Thiele - small parameters

Bl factor (Bl) (T x m) 13.00 T x m

Mounting information

Overall diameter 131 mm / 5.16 inches
Overall height 88 mm / 3.46 inches
Mounting 4 x 6 mm threaded holes at 90°

Standard compliance

Safety agency CE compliant

Size / Weight

Weight 2.74 kg / 6.04 lbs

Shipping information

Package Height 102 mm / 4.02 inches
Package Width 150 mm / 5.91 inches
Package Depth 152 mm / 5.98 inches
Package Weight 2.95 kg / 6.5 lbs
