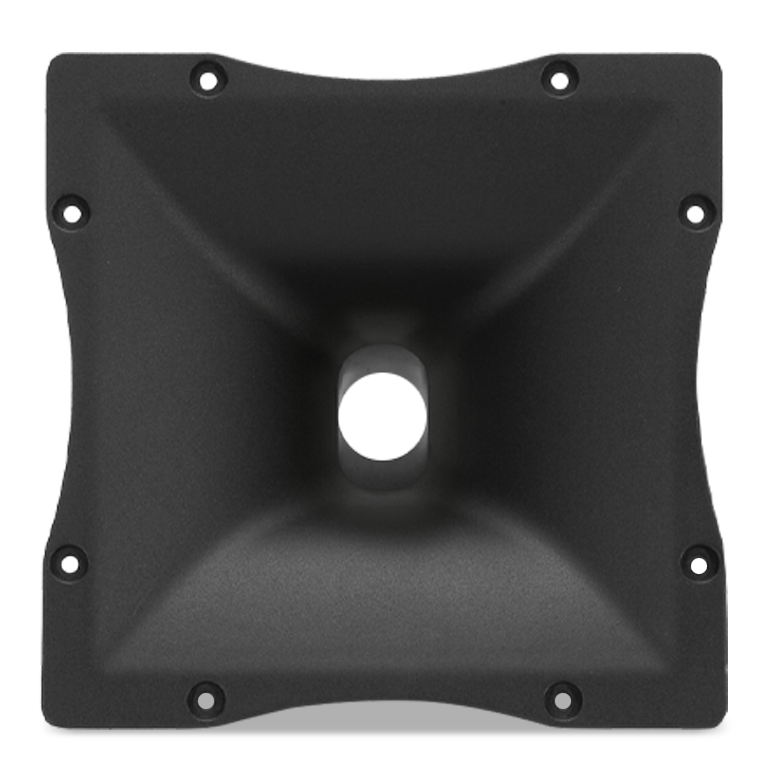

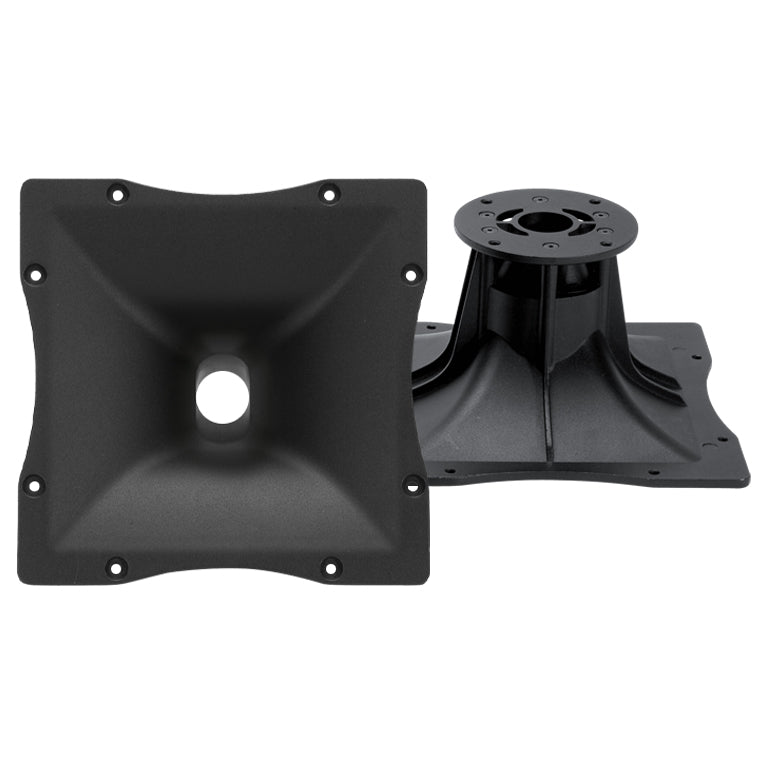

RCF HF94, Constant Directivity Horn, 1"/1.4" Throat, 90° x 40° Coverage, 250 x 250mm, 500 Hz Cut-off
RCF HF94, Constant Directivity Horn, 1"/1.4" Throat, 90° x 40° Coverage, 250 x 250mm, 500 Hz Cut-off
$179.00
Sale price
$179.00
Regular price
$239.00
HF94 Pro HF Horn
Constant Directivity Horn, 1"/1.4" Throat, 90° x 40° Coverage, 250 x 250mm, 500 Hz Cut-off
Features
- 1-inch/1.4 inch Throat Adaptor
- 90° x 40° Constant Directivity Coverage
- Loading down to 500 Hz
- Thick Aluminum Body for best heat dissipation in conjuntion to Neodimium Compression Drivers
- Perfectly Controlled Dispertion
Specifications
General specifications
| Throat Diameter | 25-36 mm / 1.0-1.4 inch |
| Horizontal coverage angle | 90° |
| Vertical coverage angle | 40° |
| Cut-off Frequency | 500 Hz |
| Material | Aluminum |
Mounting information
| Overall height | 250 mm / 9.84 inches |
| Overall width | 250 mm / 9.84 inches |
| Overall depth | 135 mm / 5.31 inches |
| Baffle Cut-out height | 205 mm / 8.07 inches |
| Baffle Cut-out width | 205 mm / 8.07 inches |
| Mounting | 4 x 7 mm holes, interaxes 101 mm/76 mm |
Standard compliance
| Safety agency | CE compliant |
Physical specifications
| Color | Black |
Size / Weight
| Height | 142 mm / 5.59 inches |
| Diameter | 250 mm / 9.84 inches |
| Weight | 1.12 kg / 2.47 lbs |
Shipping information
| Package Height | 155 mm / 6.1 inches |
| Package Width | 265 mm / 10.43 inches |
| Package Depth | 265 mm / 10.43 inches |
| Package Weight | 2 kg / 4.41 lbs |
