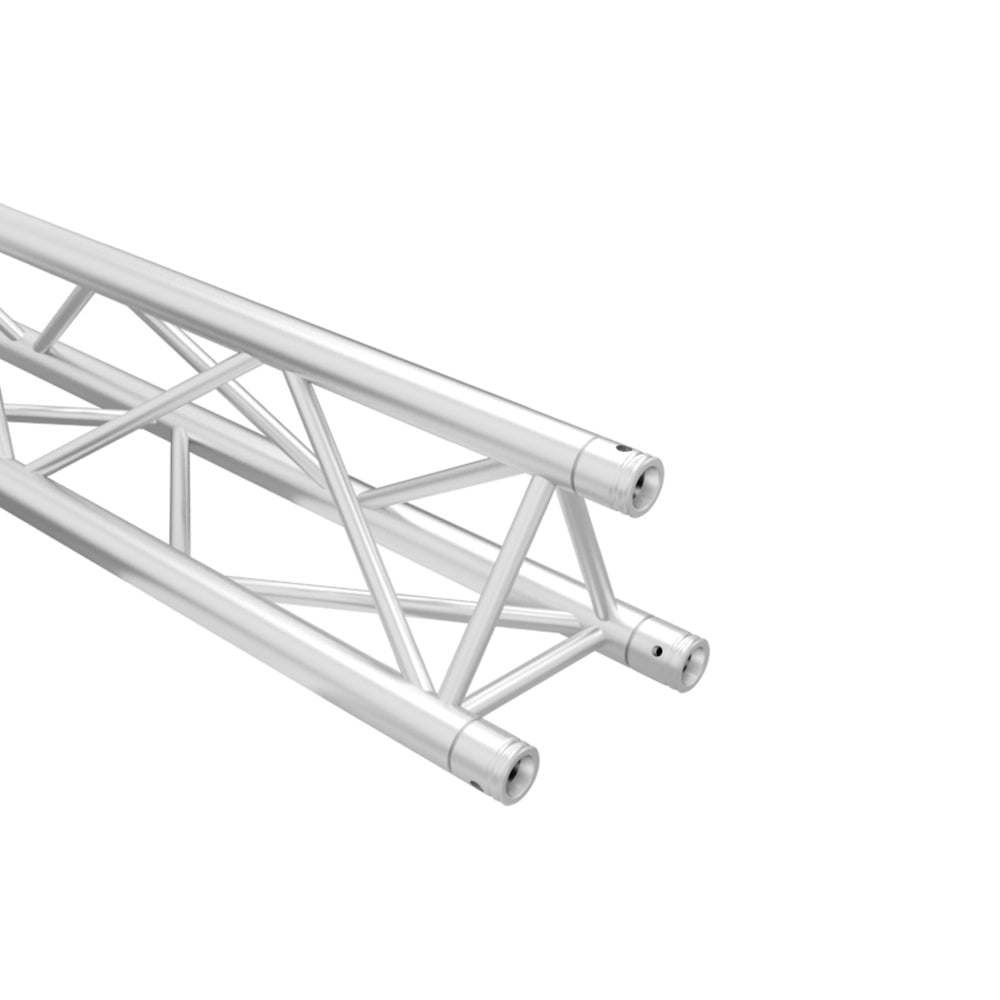

PRODJ-TR-4078 4.92 FT (1.5M) TRIANGULAR SEGMENT

PRODJ-TR-4078: 4.92 ft (1.5m) F33 11.42 in Triangular Truss Straight Segment

F33 Triangular Truss: 11.42" Triangular Truss. Engineered and manufactured to conform to the standards required to receive the TÜV SÜD stamp, our line of products offers truss solutions for all applications.

Specifications

• 4.92ft/1.5m Straight Segment
• External Dimensions: 290mm x 257mm
• Tubes: 50x2mmm
• Braces: 20x2mm
• Material: EN-AW 6082 T6
• Connecting Hardware Included
• Unit Weight: 7.72kg/17lb

Series Specifications

EXTERNAL DIMENSION: 290mm; TUBES: 50x2mm; BRACES: 20x2mm; MATERIAL: EN-AW 6082 T6. Connecting hardware is included with each truss.

Resources

• CAD_FILE: PRODJ-TR-4078.dwg
