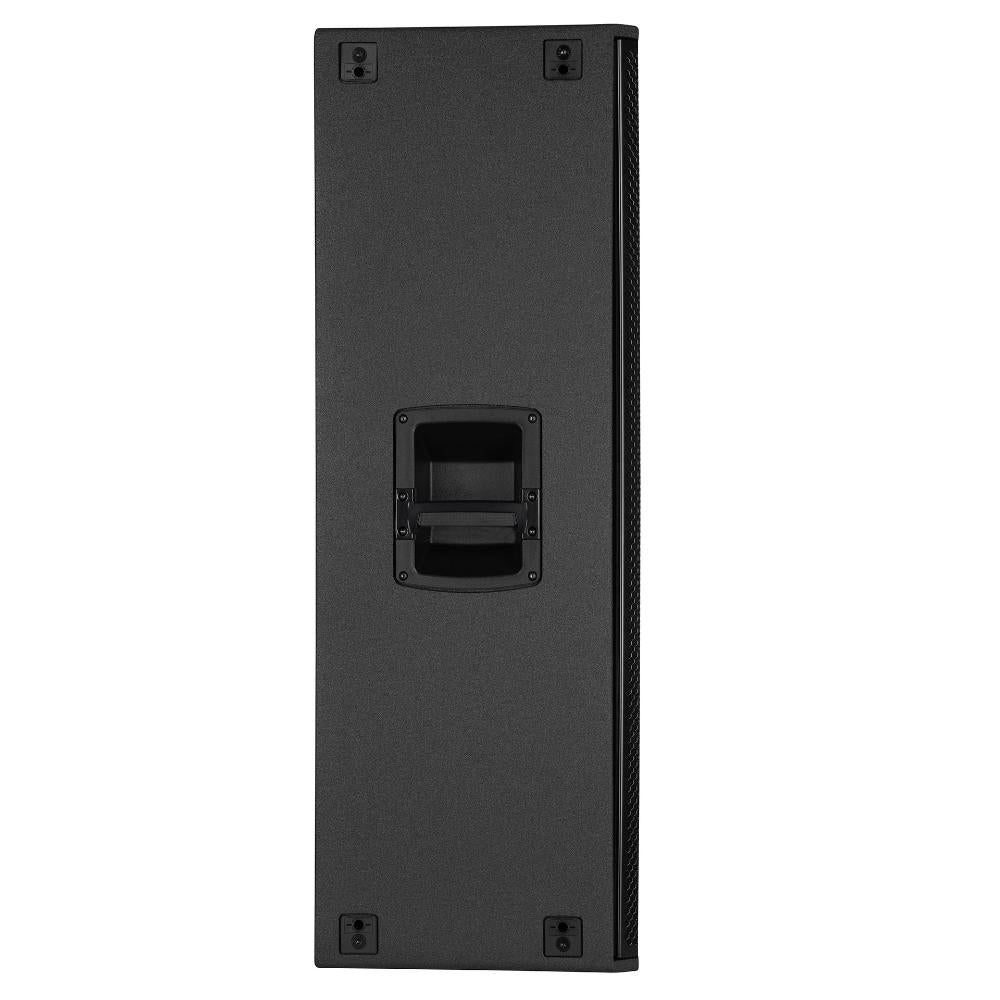

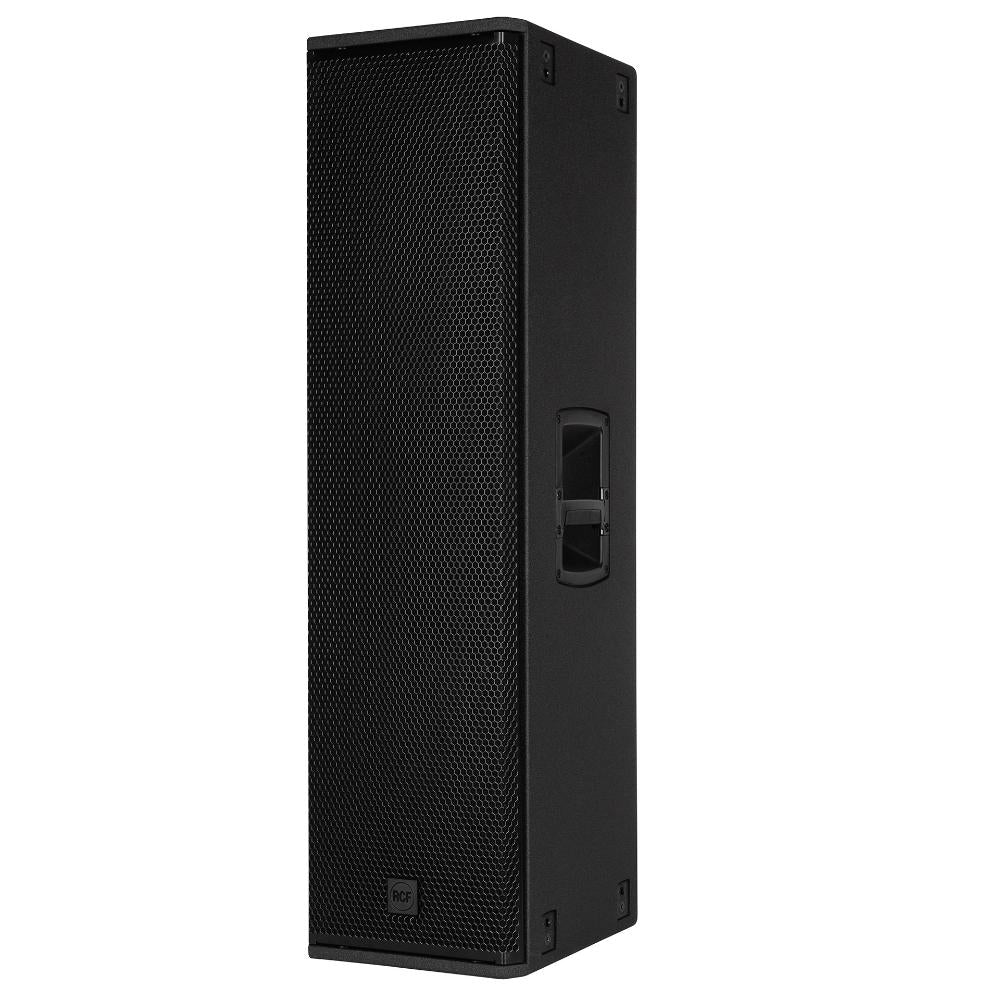

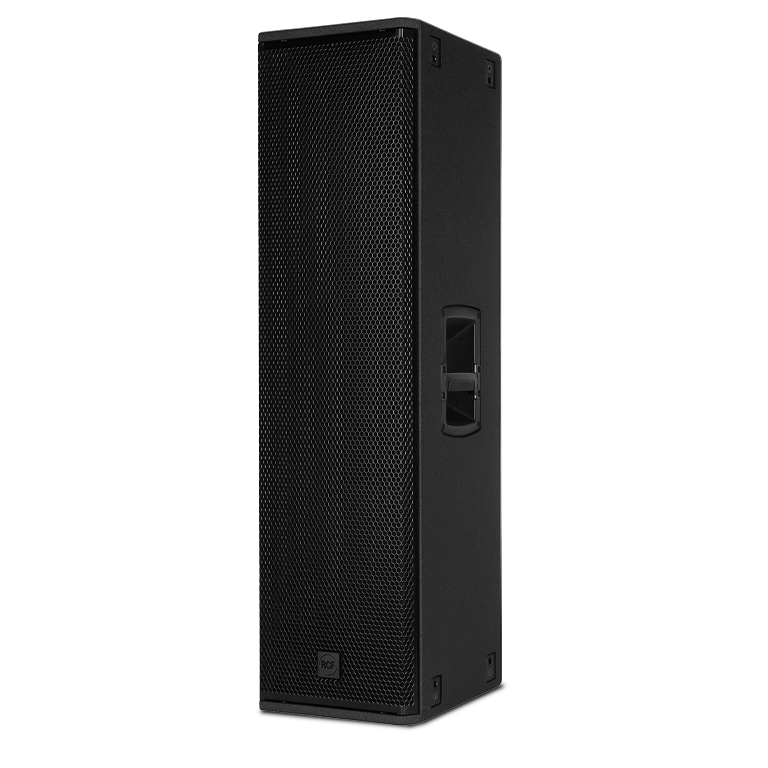

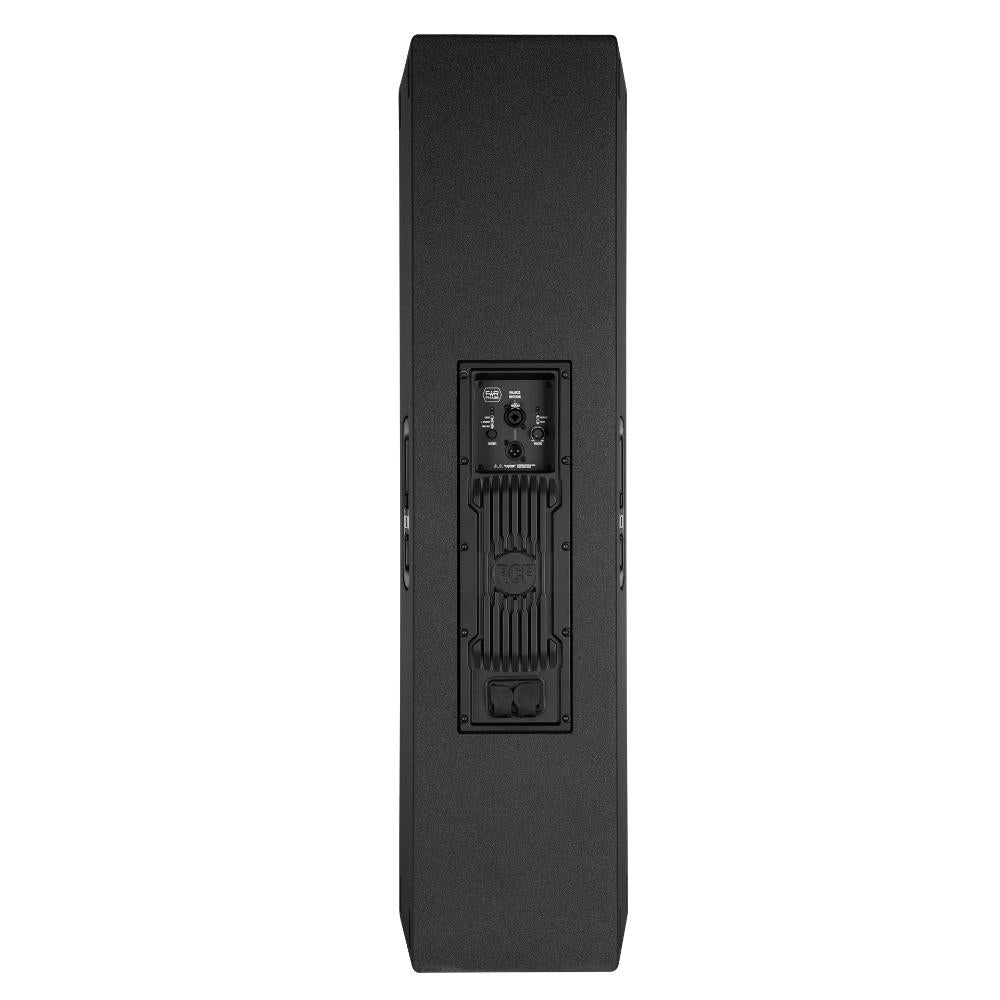

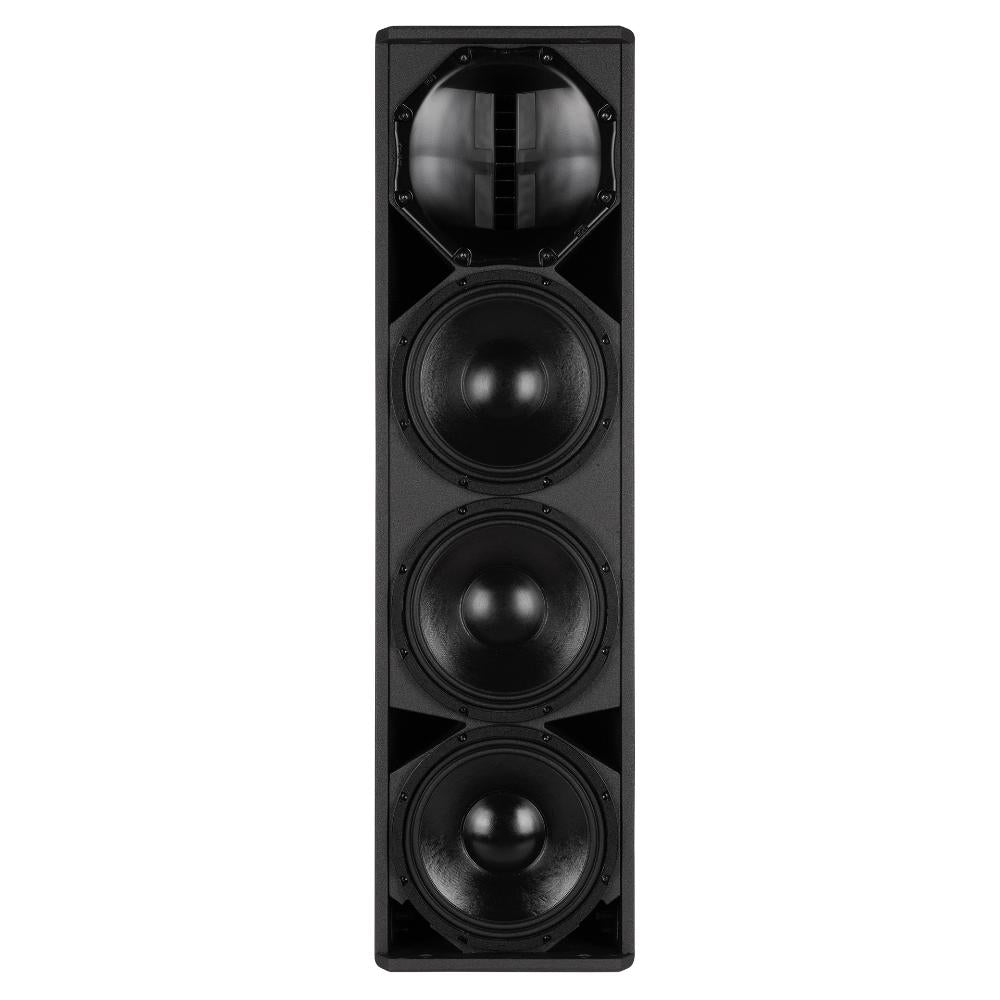

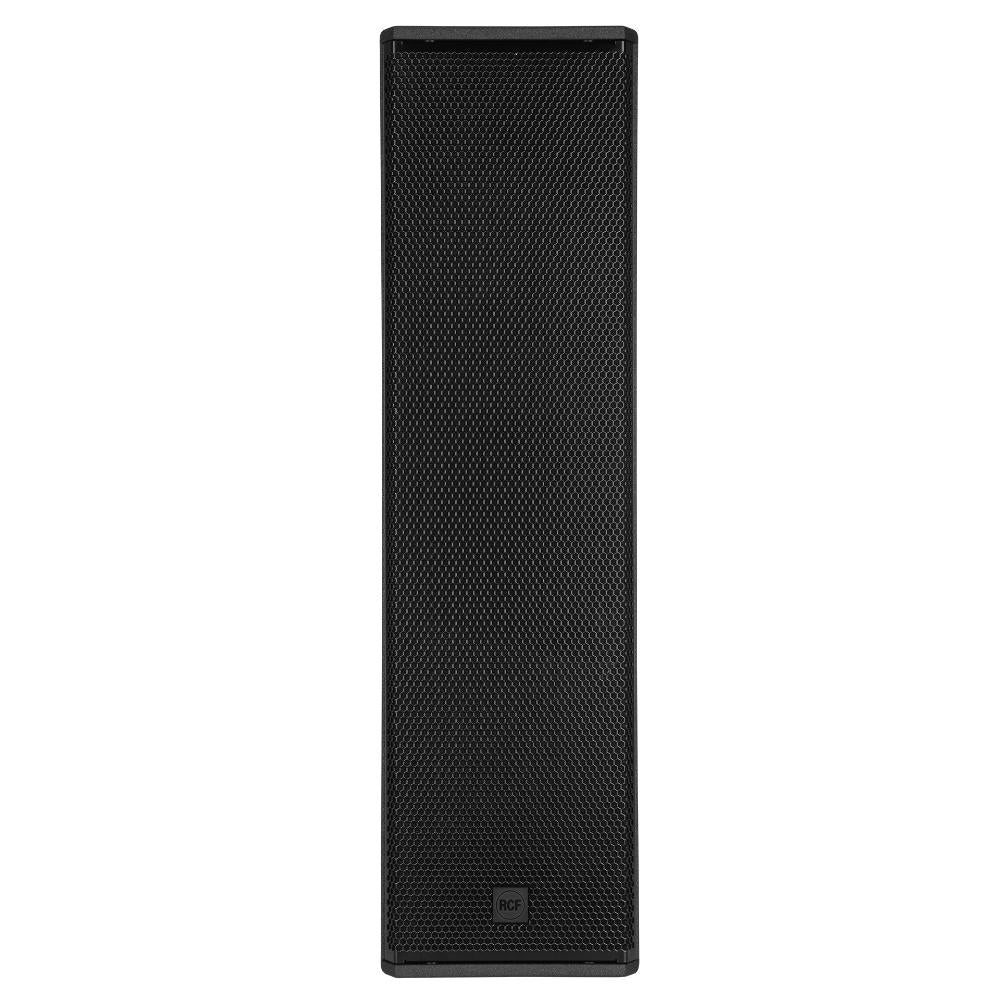

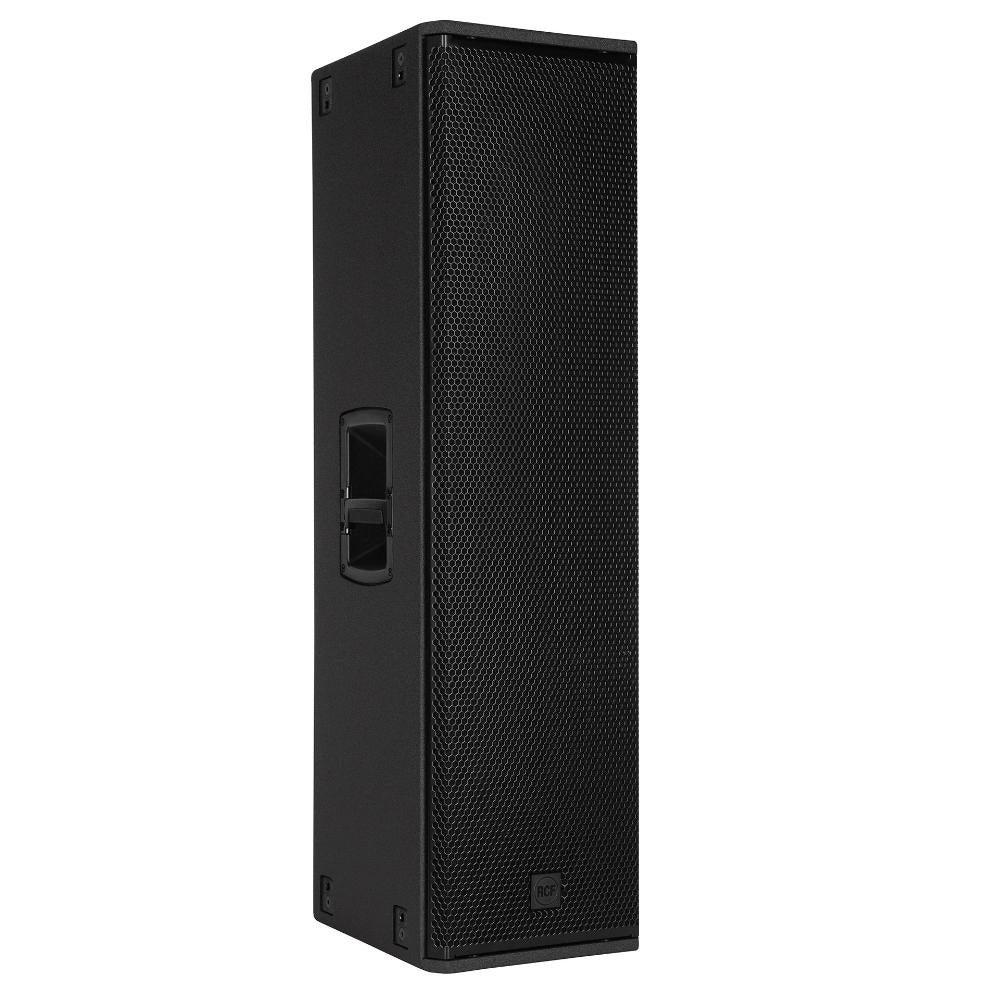

RCF NXL44-A-MK2 - Active 2100W Triple 10" 2-Way Column Speaker
$3,899.00
Sale price
$3,899.00
Regular price
Skip to product information
RCF NXL44-A-MK2 - Active 2100W Triple 10" 2-Way Column Speaker
$3,899.00
Sale price
$3,899.00
Regular price
NXL 44-A MK2 — line array column with three 10" neodymium woofers and 3" titanium compression driver. 2100W Class-D, 135 dB SPL, 100° x 25° coverage. FiRPHASE and BMC.
Technical Specifications
| Acoustical specifications | |
| Frequency Response | 45 Hz - 20000 Hz |
| Max SPL @ 1m | 135 dB |
| Horizontal coverage angle | 100° |
| Vertical coverage angle | 25° |
| Transducers | |
| Compression Driver | 1 x 1.4'' neo, 3.0'' v.c |
| Woofer | 3 x 10'' neo, 2.5'' v.c |
| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | Combo XLR/Jack |
| Output connectors | XLR |
| Input sensitivity | -2 dBu/+4 dBu |
| Processor section | |
| Crossover Frequencies | 800 |
| Protections | Thermal, Excurs., RMS |
| Limiter | Soft Limiter |
| Controls | Linear/2 Speakers/High-Pass presets, Volume |
| Controls | |
| Power section | |
| Total Power | 2100 W Peak |
| High frequencies | 700 W Peak |
| Low frequencies | 1400 W Peak |
| Cooling | Convection |
| Connections | Powercon TRUE1 TOP IN/OUT |
| Connections | |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Baltic birch plywood |
| Hardware | 8 x M8, 8 x quick lock |
| Handles | 2 side |
| Pole mount/Cap | 35 mm insert |
| Grille | Steel |
| Color | Black |
| Size / Weight | |
| Height | 1080 mm / 42.52 inches |
| Width | 297.5 mm / 11.71 inches |
| Depth | 373 mm / 14.69 inches |
| Weight | 33.4 kg / 73.63 lbs |
| Shipping information | |
| Package Height | 400 mm / 15.75 inches |
| Package Width | 1115 mm / 43.9 inches |
| Package Depth | 327 mm / 12.87 inches |
| Package Weight | 35.5 kg / 78.26 lbs |
