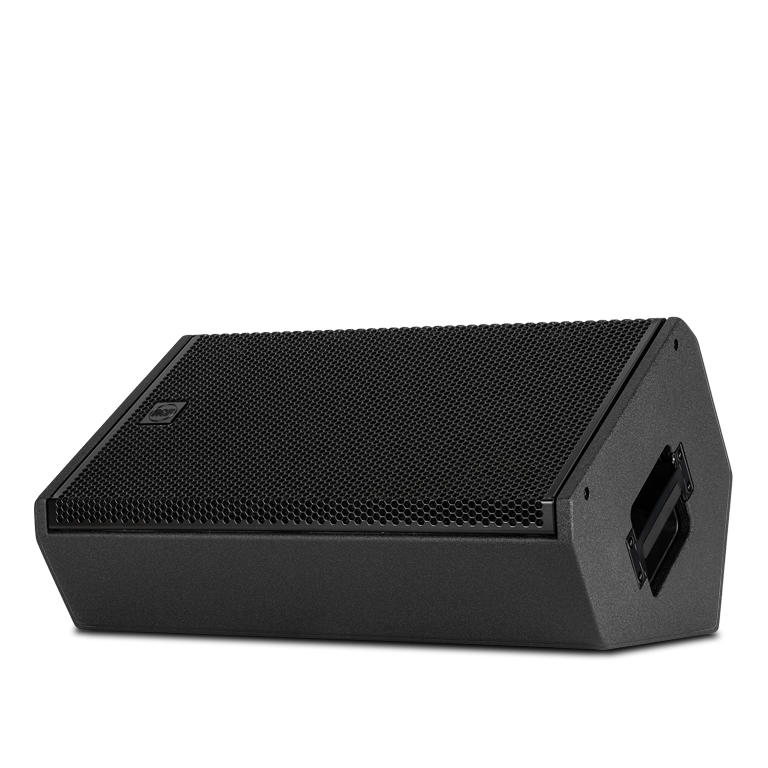

RCF NX912-SMA - Active 2100W 12" 2-Way High Output Stage Monitor
$1,699.00
Sale price
$1,699.00
Regular price
Skip to product information
RCF NX912-SMA - Active 2100W 12" 2-Way High Output Stage Monitor
$1,699.00
Sale price
$1,699.00
Regular price
TOURING | NX 912-SMA | PROFESSIONAL ACTIVE STAGE MONITOR | 2100W Class-D bi-amplification | 1.75" Compression Driver | Up to 130 dB Sound Pressure Level
Technical Specifications
| Acoustical specifications | |
| Frequency Response | 50 Hz - 20000 Hz |
| Max SPL @ 1m | 130 dB |
| Horizontal coverage angle | 100° |
| Vertical coverage angle | 70° |
| Transducers | |
| Compression Driver | 1 x 1.0'', 1.75'' v.c |
| Woofer | 1 x 12'', 2.5'' v.c |
| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | Combo XLR/Jack |
| Output connectors | XLR |
| Input sensitivity | -2 dBu/+4 dBu |
| Processor section | |
| Crossover Frequencies | 1600 Hz |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Power section | |
| Total Power | 2100 W Peak |
| High frequencies | 700 W Peak |
| Low frequencies | 1400 W Peak |
| Cooling | Convection |
| Connections | |
| Powercon TRUE1 TOP IN/OUT | |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Plywood |
| Handles | 1 on side and 1 on top |
| Pole mount/Cap | 35 mm insert |
| Grille | Steel |
| Color | Black |
| Size / Weight | |
| Height | 320 mm / 12.6 inches |
| Width | 620 mm / 24.41 inches |
| Depth | 394 mm / 15.51 inches |
| Weight | 20 kg / 44.09 lbs |
| Shipping information | |
| Package Height | 675 mm / 26.57 inches |
| Package Width | 425 mm / 16.73 inches |
| Package Depth | 370 mm / 14.57 inches |
| Package Weight | 23 kg / 50.71 lbs |
