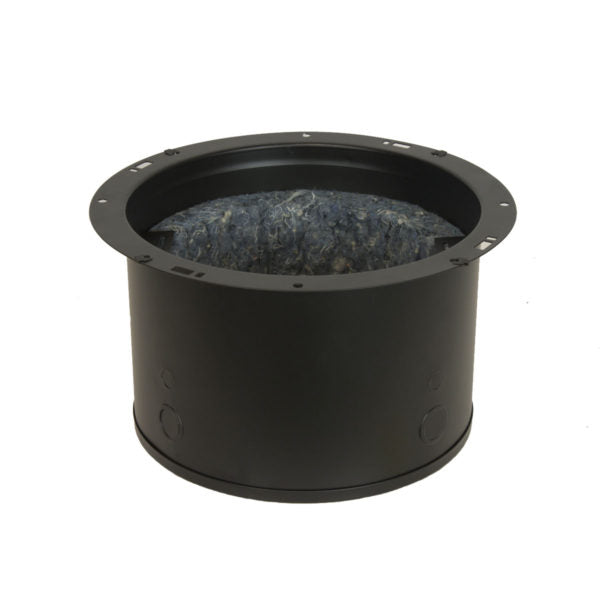

XCP87: Recessed Backbox


Speaker enclosure with flat grille mounting flange will accept an 8 inch driver and torsion or screw-mount grille for in-wall/ceiling installations.


SPECIFICATIONS

  • Material:   Welded unitized heavy gauge steel
  • Diameter:  10.06 in.
  • Depth:  6.69 in.
  • Volume:   0.308 cu.ft.
  • Flange:  Flat
  • Acoustical Treatment:  Undercoated,  1.5 in. acoustic batting
  • Mounting Aids:  U-clips, torsion receptacles, knockouts
  • For Grille Type:  Screw-mount or torsion

COMPLIANCE & CERTIFICATION

  • Made in U.S.A.
  • Certified U.S. steel
  • UL Listed only when used with Lowell Driver/Grille Assembly WB8-8A50-T870

A&E SPECIFICATIONS

  • The recessed enclosure shall be Lowell Model No. XCP87, which shall be 22-gauge steel undercoated to eliminate acoustic and mechanical resonance and finished with a black powder epoxy paint. The enclosure shall measure 10.06 in, diameter x 6.69 in. depth. It shall feature four .5–.75 knockouts for conduit, four .5" knockouts for wires and 1.5 in. batting.
