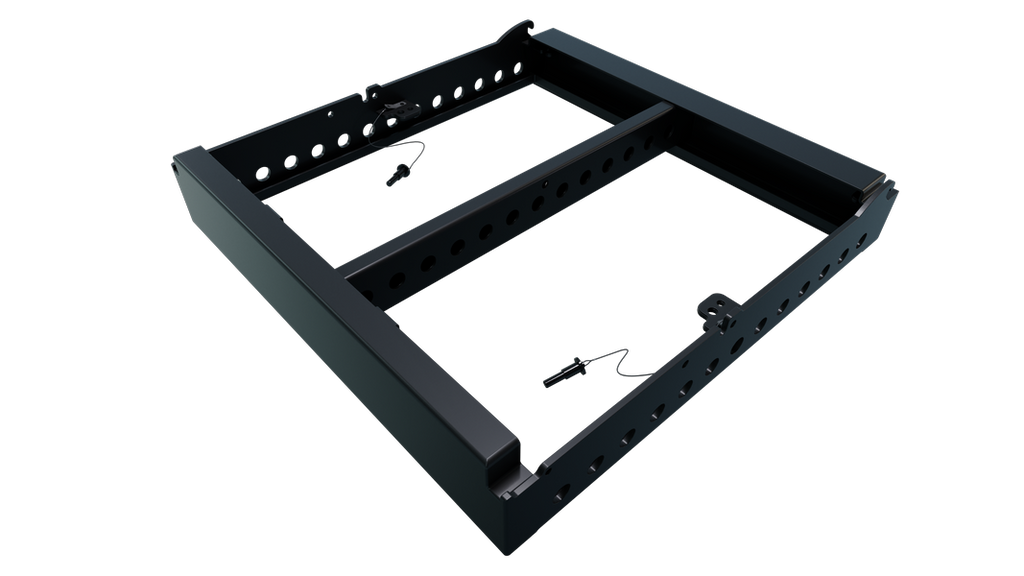

QSC LA112-AF - Array Frame for LA112 Line Array Loudspeakers

QSC LA112-AF - Array Frame for LA112 Line Array Loudspeakers

The LA112-AF is a dedicated array frame that allows suspension of up to six LA112 line array loudspeakers for flown deployments in concerts, events, and fixed installations.

Key Features

• Supports up to six (6) LA112 loudspeakers in a flown configuration
• Compatible with LA112-KIT-SA sub-stack adapter for ground stacking over LS118
• Rugged steel construction
• Integrated storage for LA112-KIT-SA when not in use

Specifications

• Type: Array frame for flown deployment of LA112 line array loudspeakers
• Maximum Load: Up to 6 LA112 loudspeakers
• Construction: Heavy-duty steel
• Compatibility: Pairs with LA112-KIT-SA for ground-stack deployment over LS118 subwoofer
• Color: Black
• Rigging Compliance: 2006/42/EC, EN ISO 12100-1, EN1991/EN1993/EN1999, DGUV Vorschrift 17/18, ANSI E1.8-2018

Dimensions & Weight

• Dimensions (H x W x D): 4.3 x 23 x 23.6 in (108 x 583 x 600 mm)
• Net Weight: 25.5 lb (11.6 kg)
• Shipping Dimensions (H x W x D): 7.5 x 26.3 x 29.9 in (191 x 668 x 759 mm)
• Shipping Weight: 29.8 lb (13.5 kg)

Compatibility

Designed for use with QSC LA112 Active Line Array Loudspeakers.
