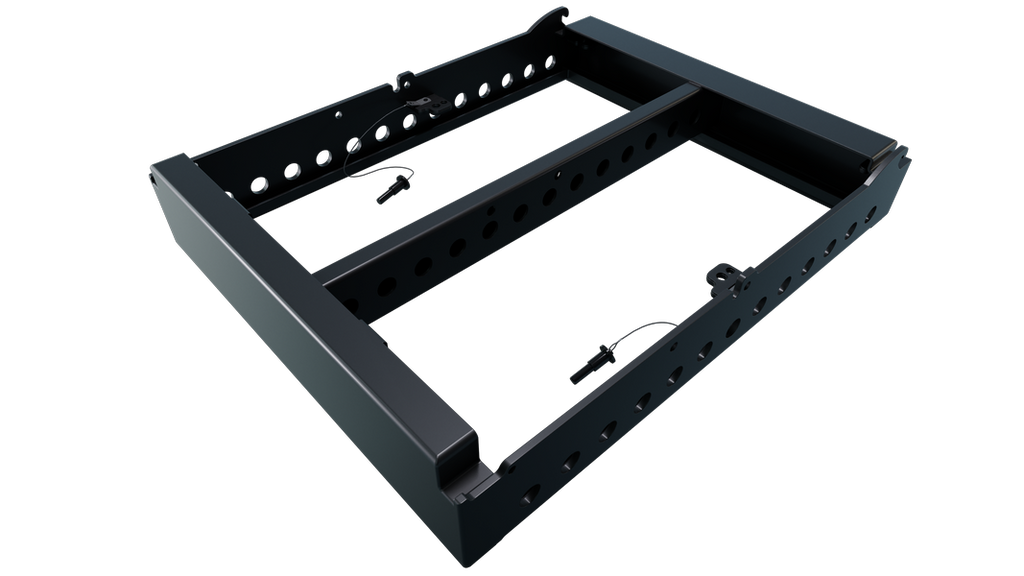

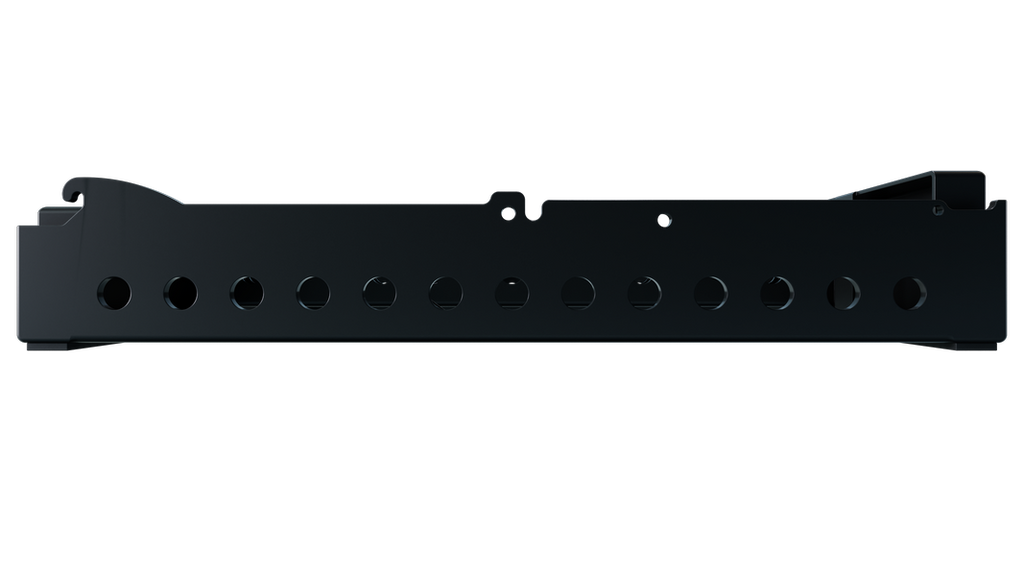

QSC LA108-AF - Array Frame for LA108 Line Array Loudspeakers

QSC LA108-AF - Array Frame for LA108 Line Array Loudspeakers

The LA108-AF is a dedicated array frame that allows suspension of up to six LA108 line array loudspeakers for flown deployments in concerts, events, and fixed installations.

Key Features

• Supports up to six (6) LA108 loudspeakers in a flown configuration
• Compatible with LA108-KIT-SA sub-stack adapter for ground stacking over LS118
• Rugged steel construction
• Integrated storage for LA108-KIT-SA stack adapter when not in use

Dimensions & Weight

• Dimensions (H x W x D): 4.3 x 18.7 x 23.6 in (108 x 476 x 600 mm)
• Net Weight: 24 lb (10.9 kg)

Specifications

• Type: Array frame for flown deployment of LA108 line array loudspeakers
• Maximum Load: Up to 6 LA108 loudspeakers
• Construction: Heavy-duty steel
• Compatibility: Pairs with LA108-KIT-SA for ground-stack deployment over LS118 subwoofer
• Color: Black
• Rigging Compliance: 2006/42/EC, EN ISO 12100-1, EN1991/EN1993/EN1999, DGUV Vorschrift 17/18, ANSI E1.8-2018

Compatibility

Designed for use with QSC LA108 Active Line Array Loudspeakers.
