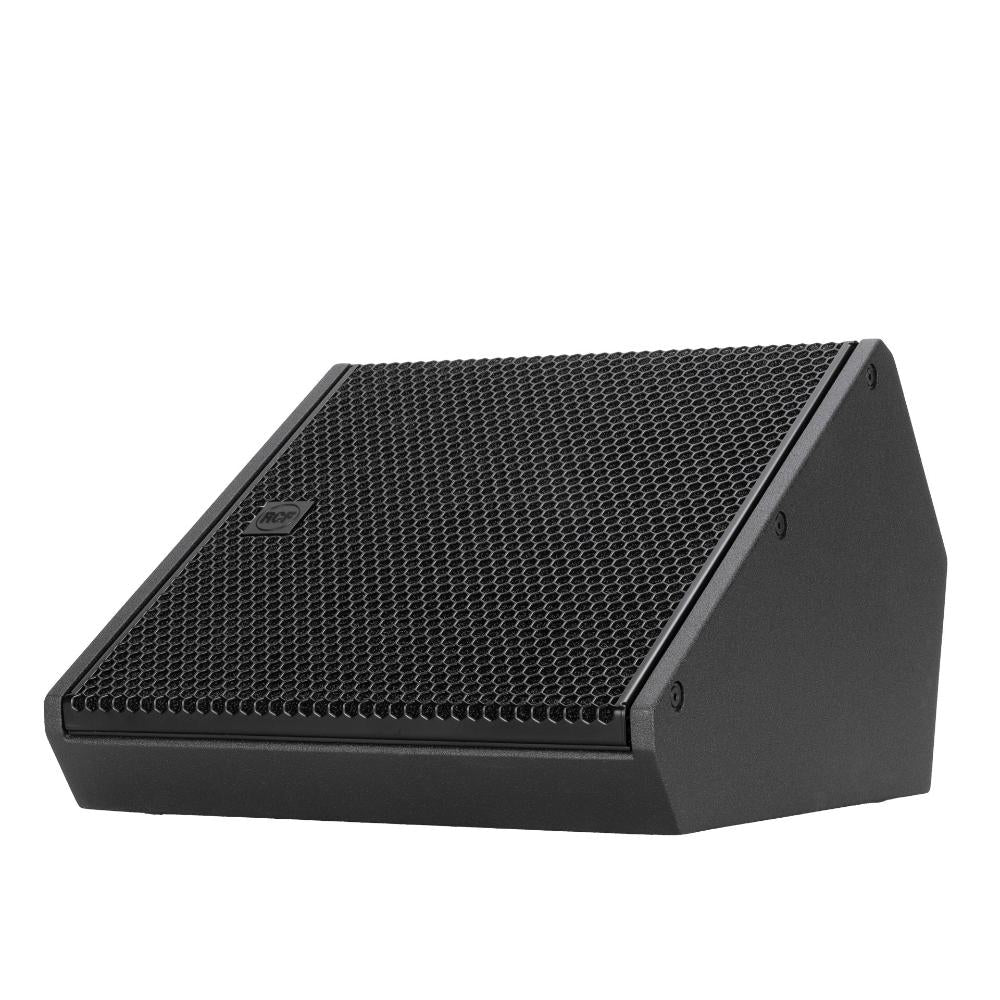

RCF KXM-20-A - Active 2000W Dual 8" 2-Way Stage Monitor (RDNET Ready)
$3,599.00
Sale price
$3,599.00
Regular price
Create Account | Forgot Password
Technical Specifications
| Acoustical specifications | |
| Frequency Response | 60 Hz - 20000 Hz |
| Max SPL @ 1m | 131 dB |
| Horizontal coverage angle | 90° |
| Vertical coverage angle | 70° |
| Transducers | |
| Compression Driver | 1 x 1.5'' neo, 3.0'' v.c |
| Woofer | 2 x 8'' neo, 2.5'' v.c |
| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | XLR, RDNet Ethercon |
| Output connectors | XLR, RDNet Ethercon |
| Input sensitivity | -2 dBu/+4 dBu |
| Processor section | |
| Crossover Frequencies | 900 Hz |
| Protections | Thermal, HF |
| Limiter | Fast Limiter |
| Controls | Bypass, Linear/High Pass, Volume, RDnet on boar |
| Controls | |
| RDNet | Onboard |
| Power section | |
| Total Power | 2000 W Peak |
| High frequencies | 600 W Peak |
| Low frequencies | 1400 W Peak |
| Cooling | Convection |
| Connections | Powercon TRUE1 TOP IN/OUT |
| Connections | |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Baltic birch plywood |
| Handles | 1 TOP |
| Pole mount/Cap | 35 mm insert |
| Grille | Steel |
| Color | Black |
| Size / Weight | |
| Height | 318 mm / 12.52 inches |
| Width | 445 mm / 17.52 inches |
| Depth | 450 mm / 17.72 inches |
| Weight | 14 kg / 30.86 lbs |
| Shipping information | |
| Package Height | 500 mm / 19.69 inches |
| Package Width | 490 mm / 19.29 inches |
| Package Depth | 375 mm / 14.76 inches |
| Package Weight | 16.4 kg / 36.16 lbs |
