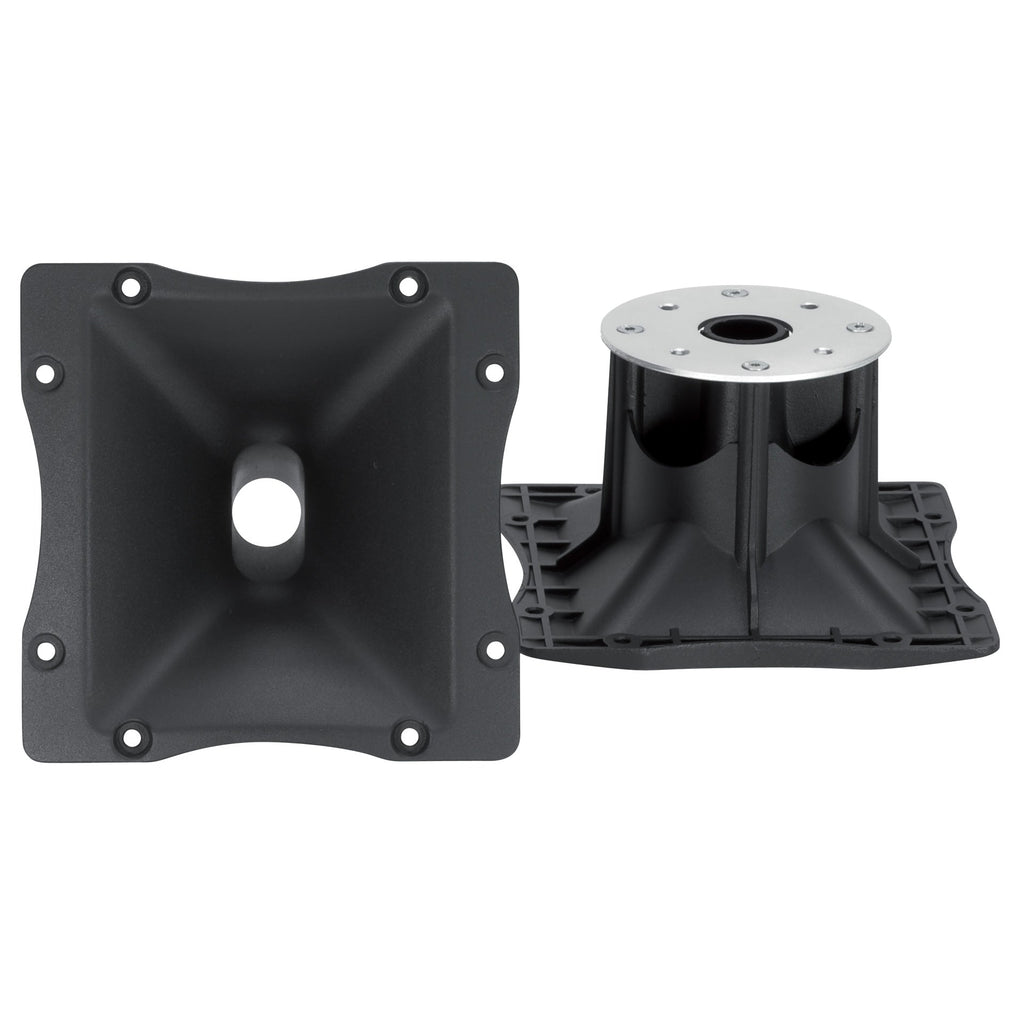

RCF HF101 Pro Hf Horn
$109.00
Sale price
$109.00
Regular price
$169.00
1-inch Throat Adaptor.90° x 70° Constant Directivity Coverage. Loading down to 1000 Hz.Aluminum Body.Perfectly Controlled Dispertion.
Features
- 1-inch Throat Adaptor
- 90° x 70° Constant Directivity Coverage
- Loading down to 1000 Hz
- Aluminum Body
- Perfectly Controlled Dispertion
Specifications
| General specifications | |
| Throat Diameter | 25-36 mm / 1.0 inch |
| Horizontal coverage angle | 90° |
| Vertical coverage angle | 70° |
| Cut-off Frequency | 1000 Hz |
| Material | Aluminum |
| Mounting information | |
| Overall height | 180 mm / 7.09 inches |
| Overall width | 180 mm / 7.09 inches |
| Overall depth | 106 mm / 4.17 inches |
| Baffle Cut-out height | 150 mm / 5.91 inches |
| Baffle Cut-out width | 150 mm / 5.91 inches |
| Mounting | 4 x 8 mm holes, interaxes 76 mm |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Height | 117 mm / 4.61 inches |
| Diameter | 180 mm / 7.09 inches |
| Weight | 0.16 kg / 0.35 lbs |
| Shipping information | |
| Package Height | 130 mm / 5.12 inches |
| Package Width | 205 mm / 8.07 inches |
| Package Depth | 200 mm / 7.87 inches |
| Package Weight | 0.83 kg / 1.83 lbs |
