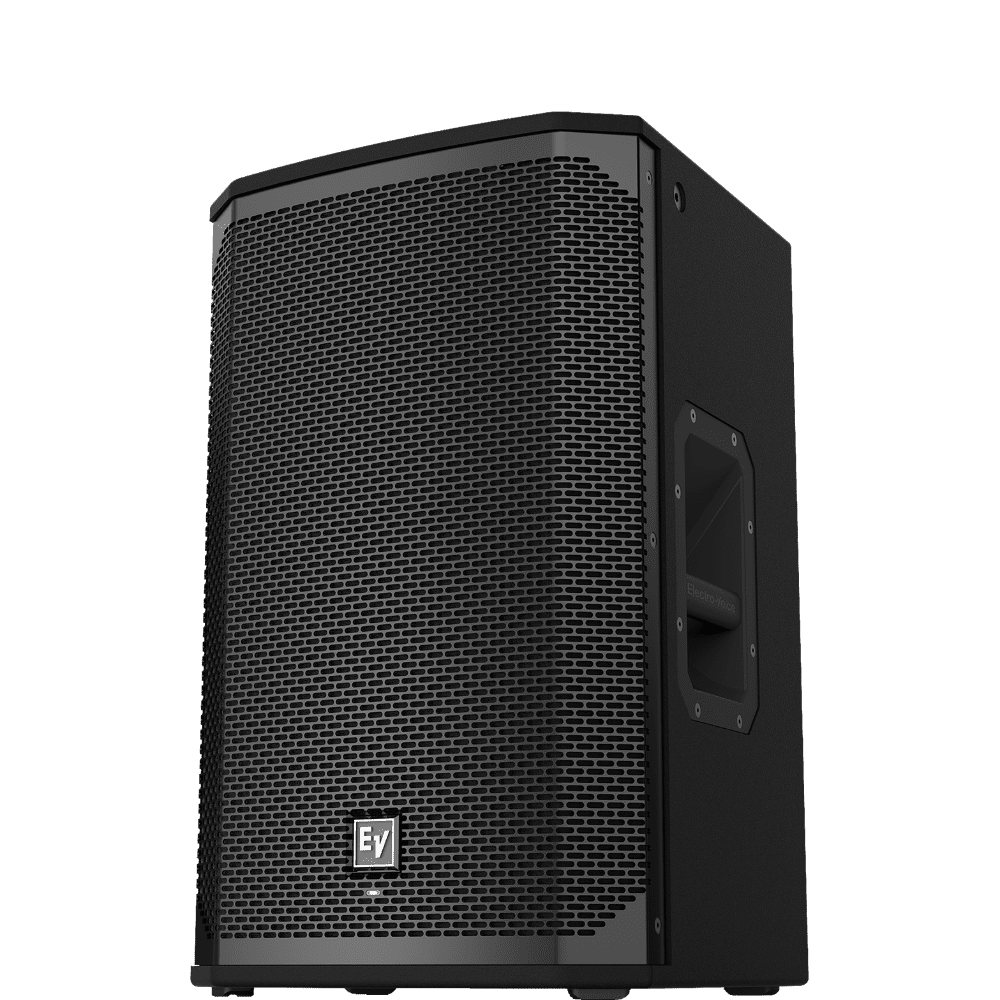

EKX-12

12" Passive Loudspeaker

EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.

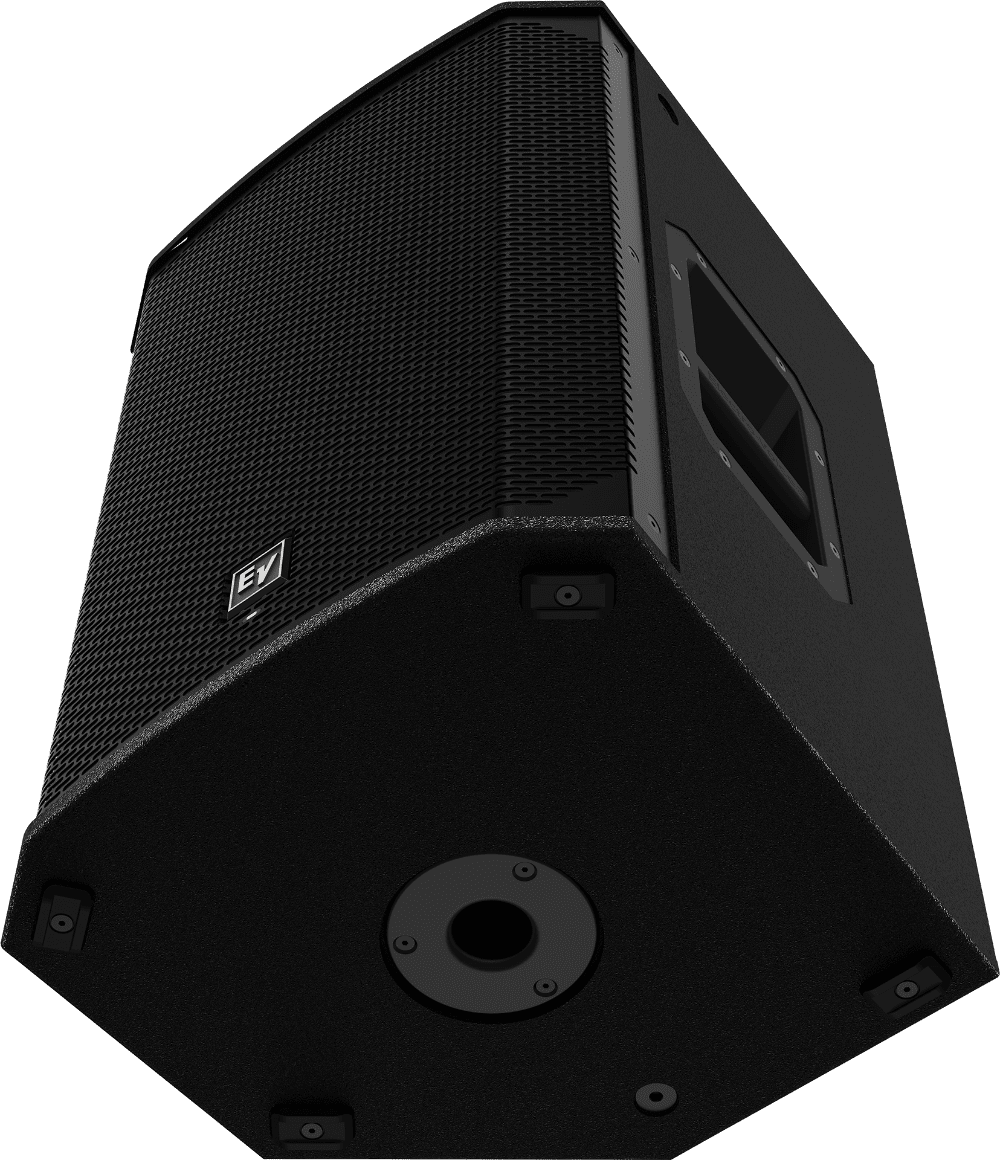

Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
90? x 60? pattern for best coverage on mid-size stages. 40? monitor angle with rubber feet.

Frequency Range (-10 dB)	55 Hz - 20 kkHz (Full Space Measurement)
Weight Net	38.36lbs (17.4kg)
Depth	14.02" (356mm)

Width	14.76" (375mm)
Height	23.9" (607mm)
Axial Sensitivity (SPL, 1 W @ 1 m)	95dB
Connector Type	Dual NL4
Coverage (Nominal -6 dB) H	90°
Crossover Frequency	1.6 kHz
Enclosure Material	15 mm, plywood with EVCoat
Family	EKX
Frequency Response (-3 dB)	82 Hz - 18 kHz (Full Space Measurement)
Grille	18 AWG steel with powdercoat
HF Transducer	DH-1M 1-inch titanium compression driver
LF Transducer	EVS-12M 300 mm (12 in)
Max. SPL/1m (calc)	131dB
Maximum SPL	131dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating)
Minimum Impedance	7.5?
Nominal Impedance	8?
Passive Power Handling	1400W peak
Power Handling (Continuous / Peak)	350 W/1400W
Power Rating	1400W
Powered or Passive	Passive
Recommended High-Pass Frequency	55Hz
Shipping Weight	47.18lbs (21.4kg)
Speaker Type	Full-Range, two-way
Suspension	(8) M10 threaded mounting points
Woofer Size	12inch
