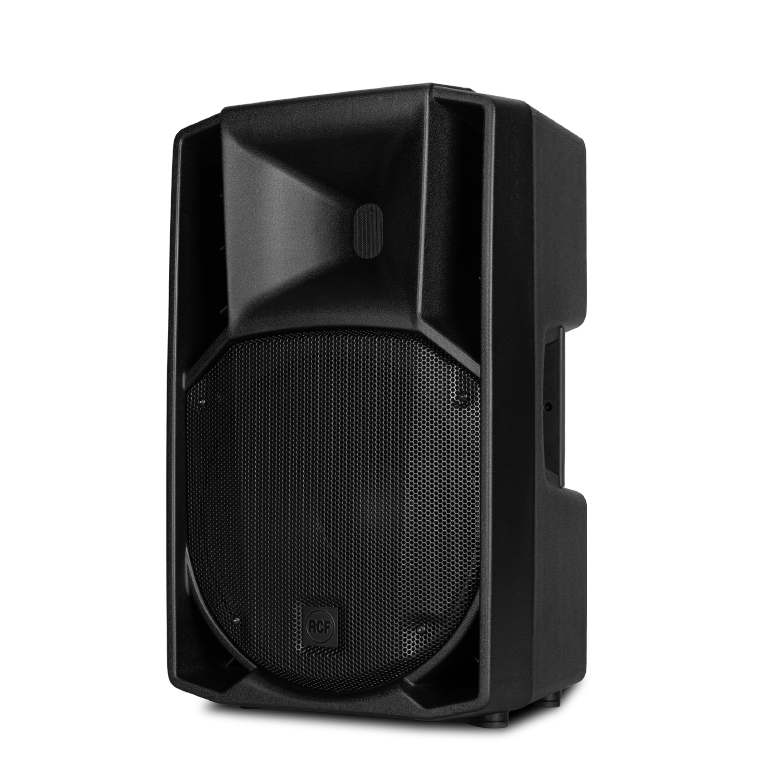

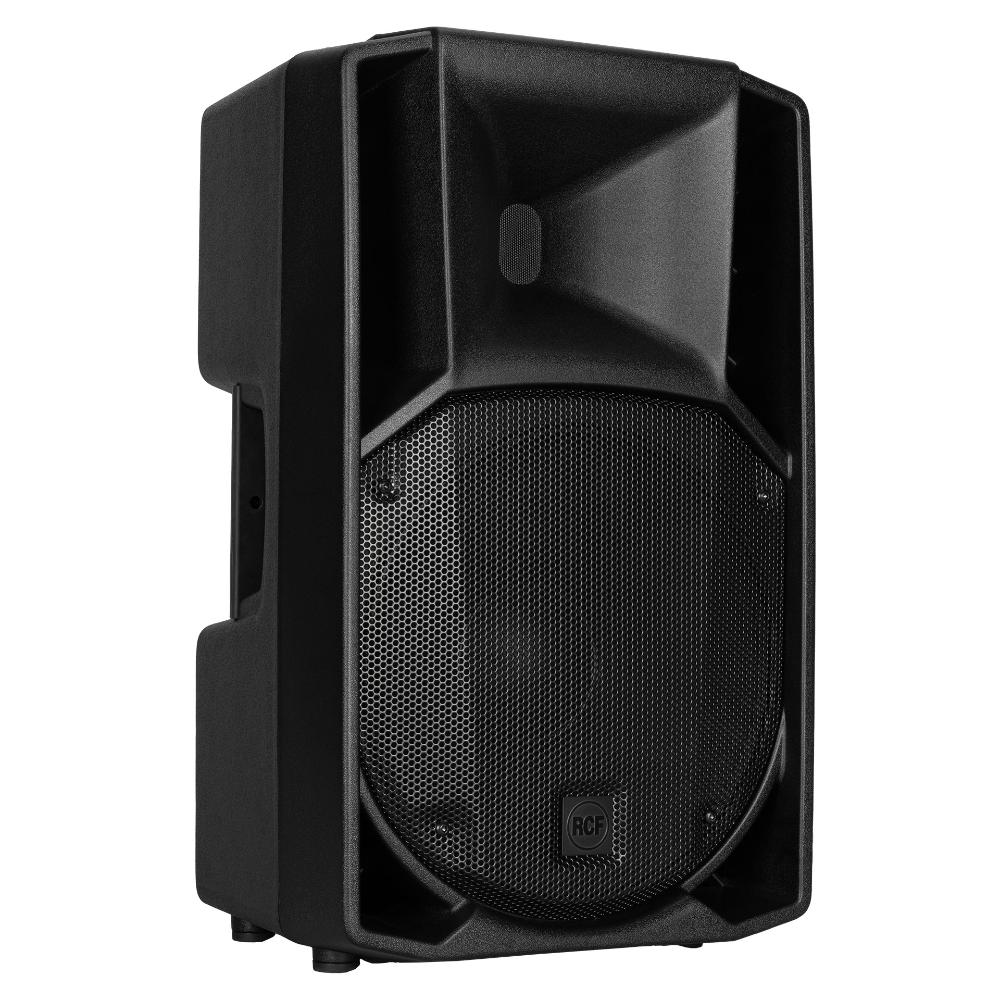

RCF ART-735A-MK5 - Active 1400W 2-Way 15" Speaker with 3" HF Driver
$999.00
Sale price
$999.00
Regular price
Skip to product information
RCF ART-735A-MK5 - Active 1400W 2-Way 15" Speaker with 3" HF Driver
$999.00
Sale price
$999.00
Regular price
ART 735-A MK5 | ACTIVE TWO-WAY SPEAKER | Technical Specifications | 132 dB Max SPL | 1400 WATT 2-way peak power | 90° x 60°, Wide dispersion constant directivity horn
Technical Specifications
| Acoustical specifications | |
| Frequency Response | 45 Hz - 20000 Hz |
| Max SPL @ 1m | 132 dB |
| Horizontal coverage angle | 90° |
| Vertical coverage angle | 60° |
| Transducers | |
| Compression Driver | 1 x 1.4'' neo, 3.0'' v.c |
| Woofer | 1 x 15'', 3.0'' v.c |
| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | XLR, Jack |
| Output connectors | XLR |
| Input sensitivity | -2 dBu/+4 dBu |
| Mic. Input Sensitivity | -32 dBu |
| Processor section | |
| Crossover Frequencies | 800 |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Controls | |
| Volume, Boost, MIC/Line | |
| Power section | |
| Total Power | 1400 W Peak |
| High frequencies | 400 W Peak |
| Low frequencies | 1000 W Peak |
| Cooling | Convection |
| Connections | |
| VDE | |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | PP Composite |
| Hardware | 2 x M10 |
| Handles | 1 on top, 1 each side |
| Pole mount/Cap | 35 mm insert |
| Grille | Steel |
| Color | Black |
| Size / Weight | |
| Height | 708 mm / 27.87 inches |
| Width | 437 mm / 17.2 inches |
| Depth | 389 mm / 15.31 inches |
| Weight | 21.4 kg / 47.18 lbs |
| Shipping information | |
| Package Height | 750 mm / 29.53 inches |
| Package Width | 500 mm / 19.69 inches |
| Package Depth | 440 mm / 17.32 inches |
| Package Weight | 24.4 kg / 53.79 lbs |
