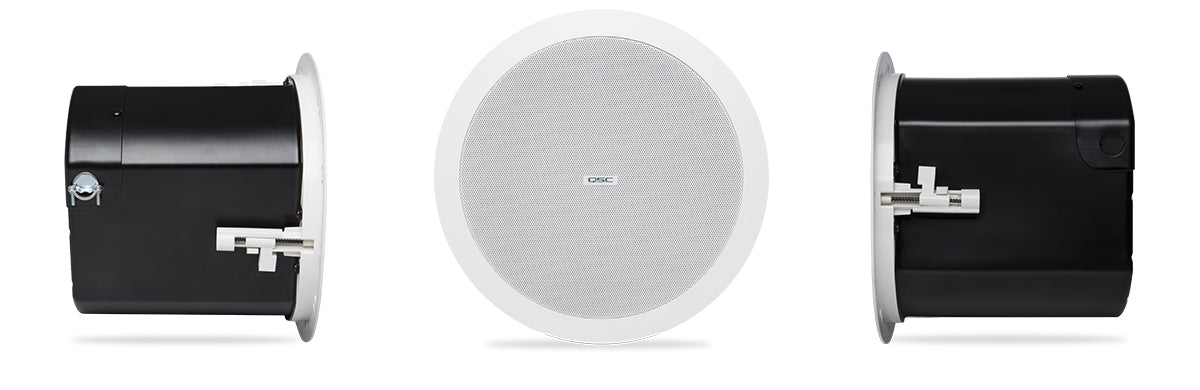

6.5" Two-way ceiling speaker, 70/100V transformer with 16? bypass, 135° conical DMT coverage,includes C-ring and rails for blind mount installation, Ø245mm cut-out. Available in white. Priced individually but must be purchased in pairs.

AD-C6T

6.5-inch, 2-way, 135° conical DMT


Features

  • Consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications
  • DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
  • Snap-fit magnetic grille
  • 3x double stepped, long travel dog-ear blind mount system
  • Advanced Intrinsic Correction™ voicings available via Q-SYS™ networked audio processing platforms, including CXD amplifiers
  • Low-saturation and low-loss 70/100V transformers with 16? bypass
  • Blemish-free removable logo
  • Removable conduit cover plate, also available as accessory for pre-install wiring
  • UL1480 and UL2043 certified EN54-24 Type A
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, & BIM information available online


SPECIFICATIONS

AD-C6T

Effective frequency range1

65 Hz – 20 kHz

Rated noise power / voltage2

60 watts / 31 volts (rms)

Sensitivity [dB]3
Sensitivity at 4m, 100V maximum tap

88
TBD

Rated coverage (-6 dB)4

135° conical DMT

Directivity factor (Q)

6.5

Directivity index (DI) [dB]

8

Maximum continuous SPL [dB]5

106

Maximum peak SPL [dB]5

112

Nominal impedance [ohms]

16

Recommended amplifier

120 watts

Transformer taps / impedance

16? (in bypass setting)
7.5W (70V); 15W (100V) Tap: 667?
15W (70V); 30W (100V) Tap: 333?
30W (70V); 60W (100V) Tap: 167?
60W (70V); N/A (100V) Tap: 83?

LF transducer

165 mm [6.5-inch] weather resistant paper cone woofer

HF transducer

25 mm [1-inch] aluminum dome tweeter

Input connector type

Euroblock connector with parallel output

Enclosure material

ABS baffle on powder coated steel back can

Grille material

Powder coated steel

Ingress protection

IP-34

Operating environment

Designed for indoor use

Operating temperature range

-20 to 50° C [-4 to 122° F]

Cutout dimension

Ø 245 mm [Ø 9.65-inch]

Net weight

4.3 kg [9.5 lb]

Product dimensions (Diameter x Height)

Ø 280 x 237 mm [Ø 11.02 x 9.32-inch]

Shipping weight

12.6 kg [27.8 lb] (pair packed)

Shipping dimensions (H x W x D)

330 x 737 x 381 mm [13 x 29 x 15-inch] (pair packed)

Included accessories

C-ring and tile rails, rail screws, euroblock connector, cut-out template, tether grille

Optional accessories

AD-MR6 (pre-install mud ring)
AD-CC6 (pre-install conduit cover)
AD-FC6 (full capture grille system)

Safety Agency

EN54-24: 2008 type A (No. pending)
UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, C-Tick X000, CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / EN60849 systems.



1-10dB from rated sensitivity
2IEC  noise, 2hrs
3Transfomer bypassed, 1W, 1m, IEC baffle, 200-10kHz average, on-axis
4500 Hz–5 kHz average
5Calculated from rated noise voltage and sensitivity
