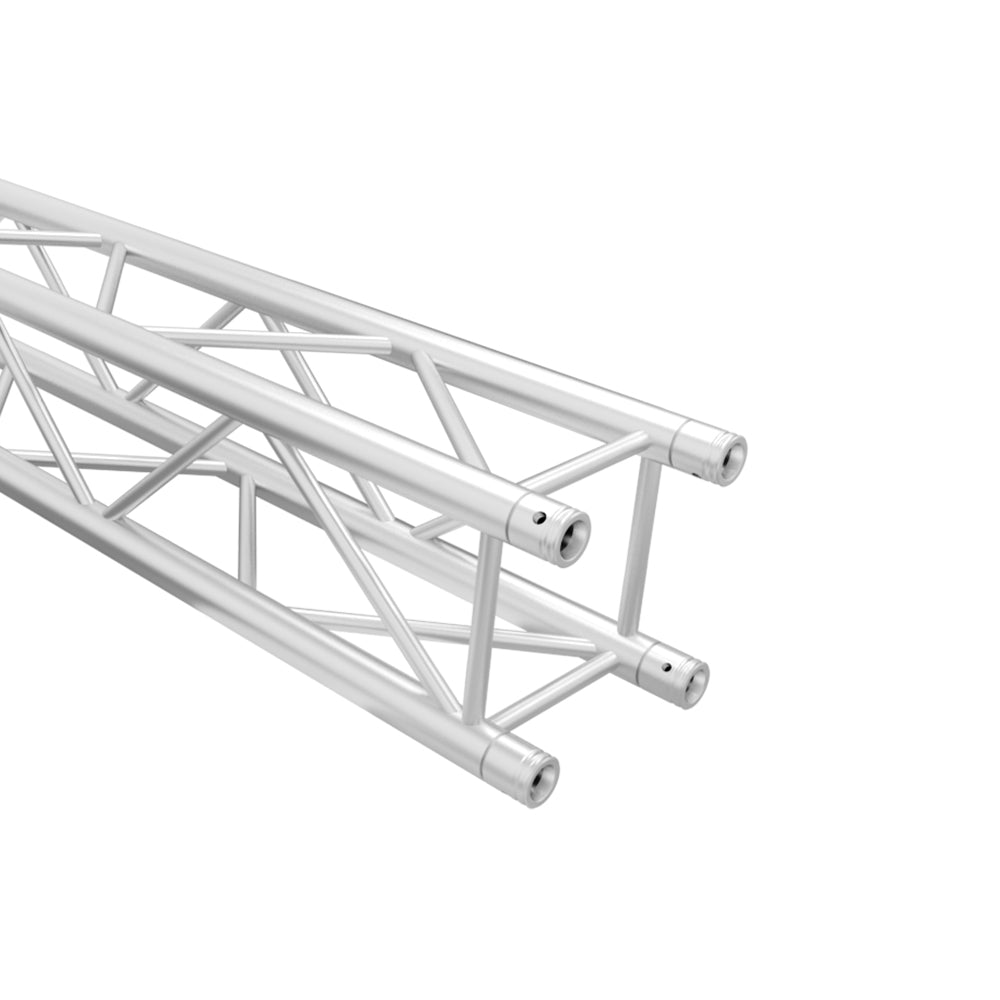

PRODJ-SQ-4112 6.56 FT (2M) SQUARE SEGMENT

PRODJ-SQ-4112: 6.56 ft (2m) F34 11.42 in Square Box Truss Straight Segment

F34 Square Truss: 11.42" Box Truss. Engineered and manufactured to conform to the standards required to receive the TÜV SÜD stamp, our line of products offers truss solutions for all applications.

Specifications

• 6.56ft / 2.0m Overall Length
• 11 7/16" (290mm) Overall Width
• 2" (50mm) Outer Diameter Tubing
• 3/4" (20mm) Diagonal Bracing
• 0.08" (2mm) Wall Thickness
• 13.17 kgs / 29 Lbs

Series Specifications

EXTERNAL DIMENSION: 290mm; TUBES: 50x2mm; BRACES: 20x2mm; MATERIAL: EN-AW 6082 T6. Connecting hardware is included with each truss.

Resources

• F34 LOAD SPAN TABLES: F34 Truss Load Span Tables PRODJ California Stamp.pdf
• PRODJ-SQ-4112 DIMENSIONAL DRAWING: F34-PRODJ-SQ-4112.pdf
• CAD_FILE: PRODJ-SQ-4112.dwg
