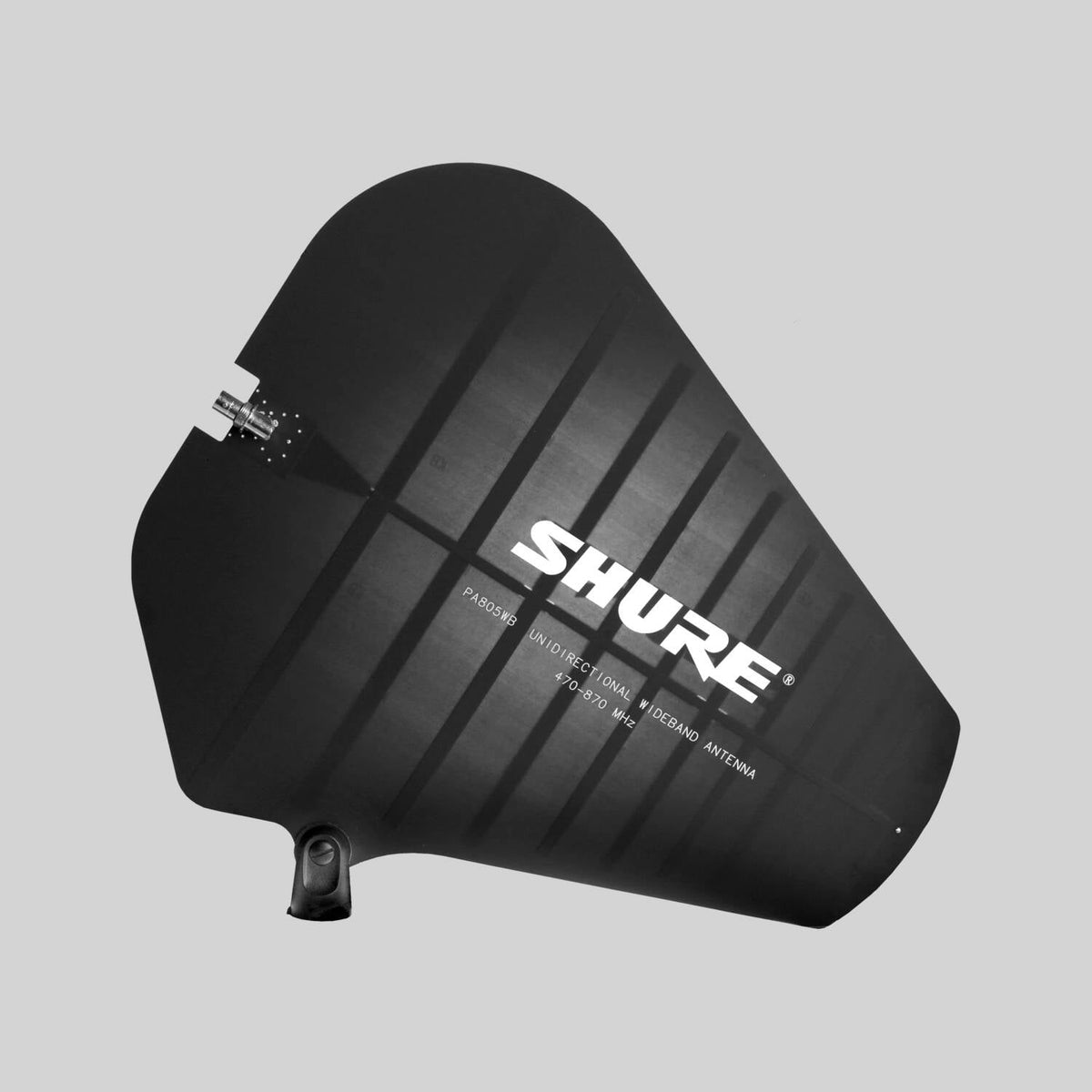

Shure PA805SWB, Directional Antenna, Passive Directional Antenna (470-952 MHz) Includes 10' Bnc/bnc Cable

The Shure PA805 is a directional antenna for increased range and reduced interference as compared to omnidirectional 1/2-wave antennas.

The PA805 can be mounted on a microphone stand or mounted to a wall using the integral swivel adapter bracket.

Dimensions and Weight

• Width: 14.882 in (378.0 mm)
• Height: 13.15 in (334.0 mm)
• Depth: 1.063 in (27.0 mm)
• Weight: 0.703 lb (319 g)

Antenna Gain: 6 dB (typical), 3 dB Beam Width: 100 ° Connector: 50 Ω, Female, BNC-type
