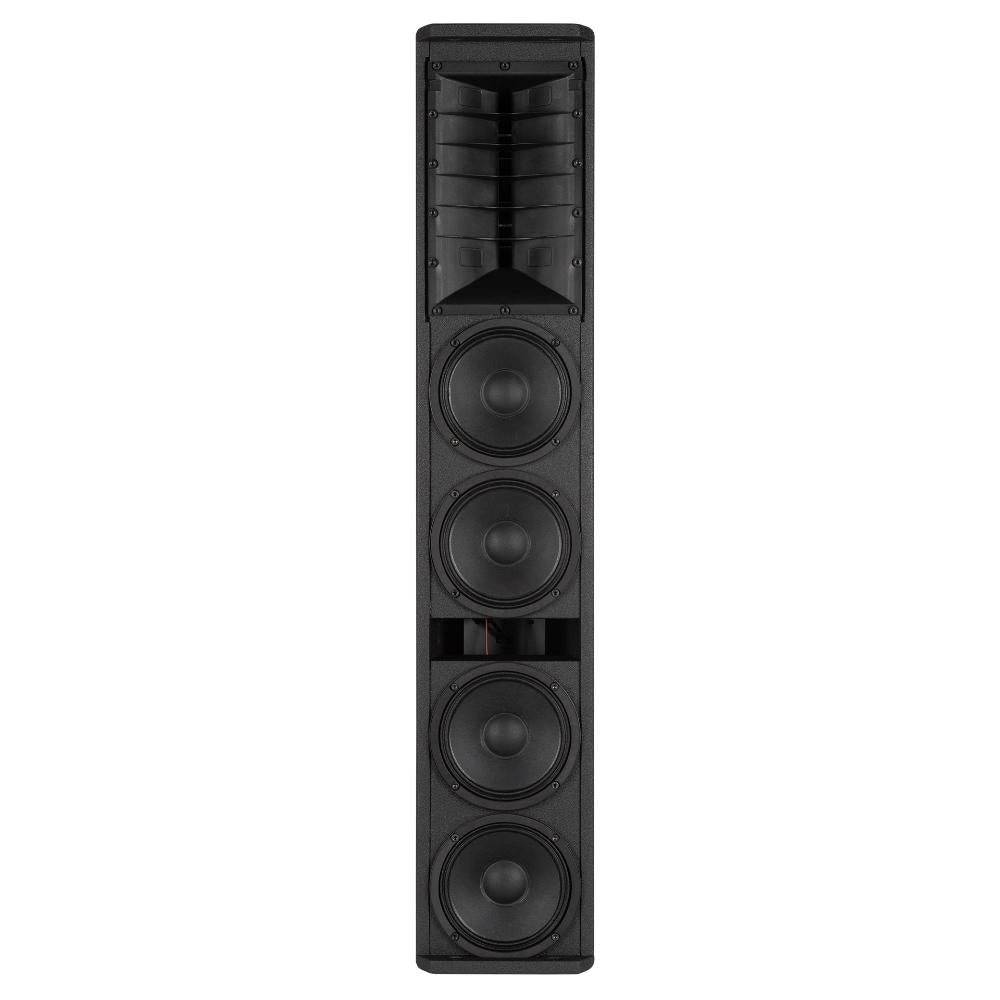

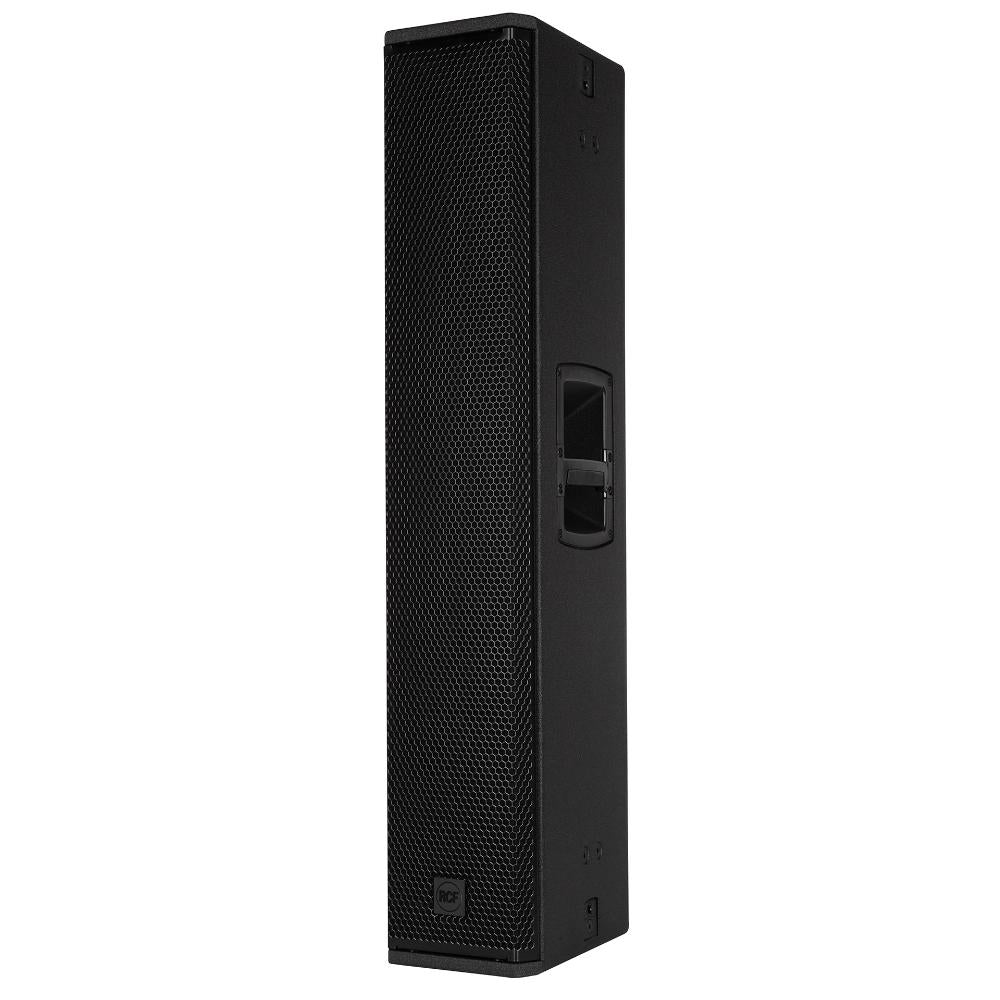

NXL 24-A MK2 — line array column with four 6" neodymium woofers and 3" titanium compression driver. 2100W Class-D, 132 dB SPL, 100° x 30° coverage. FiRPHASE and BMC.
Technical Specifications
| Acoustical specifications | |
| Frequency Response | 60 Hz - 20000 Hz |
| Max SPL @ 1m | 132 dB |
| Horizontal coverage angle | 100° |
| Vertical coverage angle | 30° |
| Transducers | |
| Compression Driver | 1 x 1.4'' neo, 3.0'' v.c |
| Woofer | 4 x 6.0'' neo, 1.5'' v.c |
| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | Combo XLR/Jack |
| Output connectors | XLR |
| Input sensitivity | +4 dBu |
| Processor section | |
| Crossover Frequencies | 800 |
| Protections | Thermal, Excurs., RMS |
| Limiter | Soft Limiter |
| Controls | Linear/2 Speakers/High-Pass presets, Volume |
| Controls | |
| Power section | |
| Total Power | 2100 W Peak |
| High frequencies | 700 W Peak |
| Low frequencies | 1400 W Peak |
| Cooling | Convection |
| Connections | Powercon TRUE1 TOP IN/OUT |
| Connections | |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Baltic birch plywood |
| Hardware | 4 x M8, 4 x quick lock |
| Handles | 2 side |
| Pole mount/Cap | 35 mm insert |
| Grille | Steel |
| Color | Black |
| Size / Weight | |
| Height | 1051 mm / 41.38 inches |
| Width | 198 mm / 7.8 inches |
| Depth | 290.4 mm / 11.43 inches |
| Weight | 24.4 kg / 53.79 lbs |
| Shipping information | |
| Package Height | 320 mm / 12.6 inches |
| Package Width | 1080 mm / 42.52 inches |
| Package Depth | 230 mm / 9.06 inches |
| Package Weight | 27.5 kg / 60.63 lbs |
