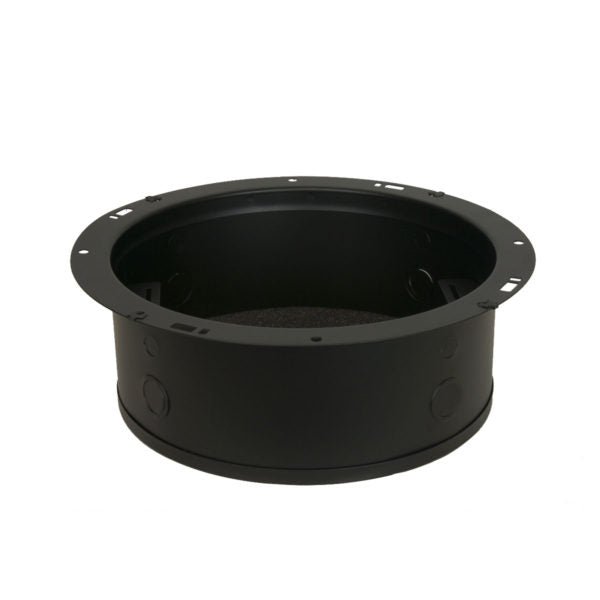

XCP84: Recessed Backbox

Recessed steel enclosure with black powder epoxy finish and flat grille mounting flange will accept an 8 inch driver and either torsion or screw-mount grille.

SPECIFICATIONS

• Material:   Welded unitized heavy gauge steel
• Diameter:  10.06 in.
• Depth:  4.06 in.
• Volume:   0.187 cu.ft.
• Acoustical Treatment:  Undercoated, foam pad
• Mounting Aids:  Knockouts, clips
• For Grille Type:  Screw-mount or torsion

COMPLIANCE & CERTIFICATION

• Made in U.S.A.
• Certified U.S. steel


A&E SPECIFICATIONS

• The recessed backbox shall be Lowell Model No. XCP84, which shall be 22-gauge steel undercoated to eliminate acoustic and mechanical resonance. The backbox shall have a 10.06" diameter and 4.06" depth. It shall have four 0.5" to 0.75" knockouts for conduit and four 0.5" knockouts for wire. The backbox shall include a foam pad. It shall be finished in black powder epoxy paint.
