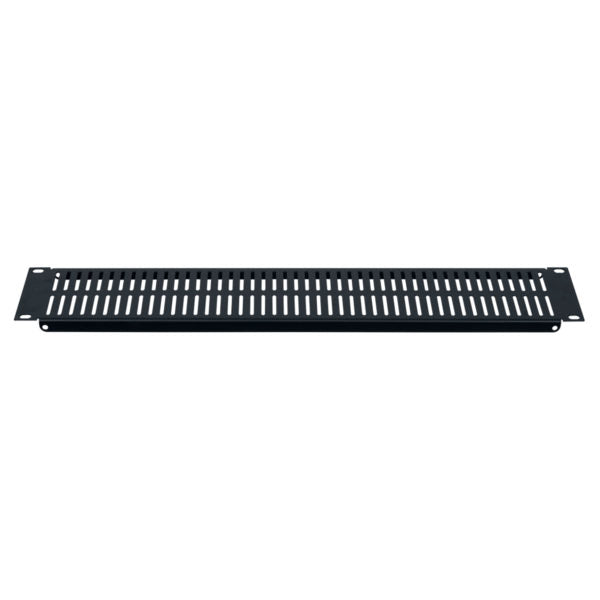

SVSP Series: Steel Vent Slot Panel, w/flange 1U-2U

Steel vent panel for 19 inch racks and cabinets features slots for passive ventilation. These panels also feature a flange.

FEATURES

• Material:  18-gauge steel
• Finish:  Smooth black semi-gloss
• Flange:  0.625 in.
• Obround Slots:  1.25 in. x 0.125 in. (on 0.375 in. centers)
• Width:  19 in.
• Height:  1U and 2U
• Multi-pack cartons available
• 3U, 4U and 7U sizes available under rack tops

COMPLIANCE & CERTIFICATION

• Made in the U.S.A.
• Certified U.S. steel
• E.I.A. compliant

A&E SPECIFICATIONS

• The rack vent panel shall be Lowell Model No. SVSP-_______, which shall be 18-gauge certified U.S. steel with a black semi-gloss powder epoxy finish. It shall measure 19"W x ______RU and have a .625" flange. The panel shall feature 1.25" x .125" obround slots on .375" centers to allow passive ventilation.
