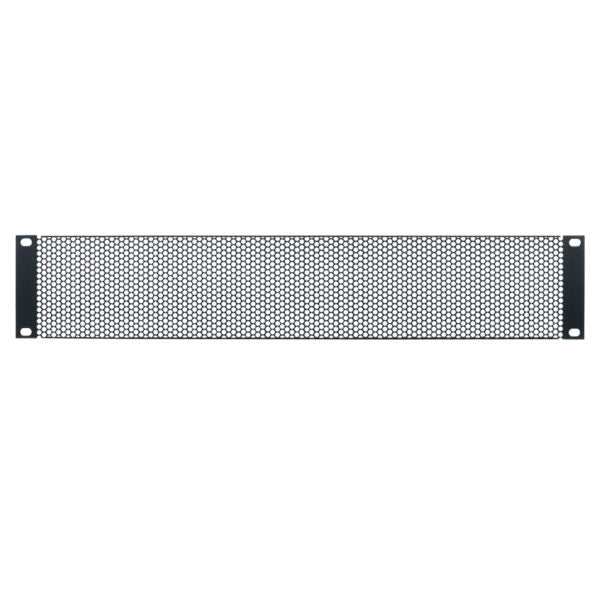

SVPL Series: Steel Vent Panel—Large holes, w/flange 1U–4U

Steel vent panel for 19 inch racks features staggered holes for passive ventilation. The vent pattern creates an open area of 63 percent. This panel also features a flange.

FEATURES

• Material:  18-gauge steel
• Finish:  Smooth black semi-gloss
• Flange:  0.5 in.
• Staggered Holes: 0.156 in. diameter, staggered pattern
• Open Area:  63 percent
• Width:  19 in.
• Height:  1–4U
• Multi-pack cartons available

COMPLIANCE & CERTIFICATION

• Made in the U.S.A.
• Certified U.S. steel
• E.I.A. compliant

A&E SPECIFICATIONS

• The rackmount vent panel shall be Lowell Model _______, which shall be 18-gauge certified U.S. steel perforated with 0.156 in. diameter holes on 0.187 in. staggered centers creating 63% open area. The panel shall feature 0.5 in. flange and smooth black semi-gloss powder epoxy finish. The panel shall measure 19 in. wide x _____ U.
