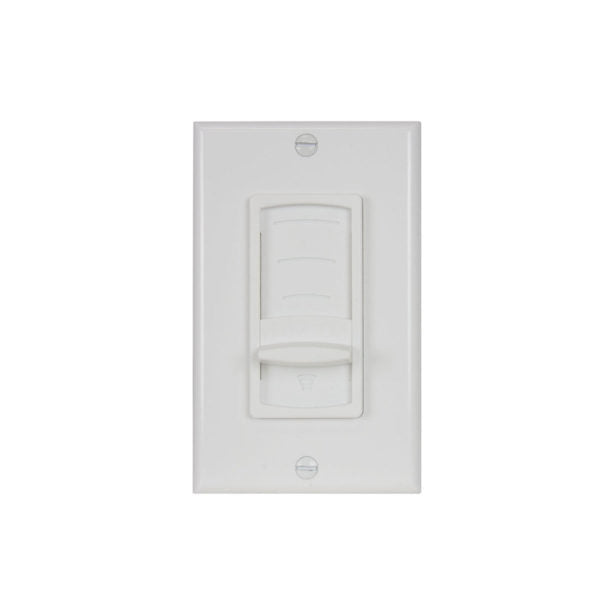

SVC100-PA-DW: 100W Attenuator w/Decorator Plate (ADA)

ADA-compliant mono attenuator with sliding bar and one-gang wall plate.

SPECIFICATIONS

• Power Rating:  100W
• Attenuation:  3dB per step (33dB total)
• Use With:  25/70/100V speaker line
• Activation:  Sliding bar
• Volume Positions:  0-10
• Two steps of 6dB each before off
• Termination:  Phoenix-style
• Wire Capacity:  14-gauge
• Wall Plate:  1-gang decorator style
• Finish:  White
• Fits standard E.O. box (2.375 in. min. depth)

COMPLIANCE & CERTIFICATION

• Made in the U.S.A. with global components
• ETL Listed

A&E SPECIFICATIONS

• The ADA compliant volume control with slide bar shall be Lowell Model SVC100-PA-DW. It shall feature 100W power rating, 3dB per step attenuation (6dB per step in last two positions before off), and 24VDC@15mA relay for emergency/paging signals to bypass/override the attenuator. It shall include a decorator style one-gang wall plate with white finish. The device shall be designed to fit an E.O. box with minimum inside dimensions of 1.875"W x 2.688"H x 2.375"D.
