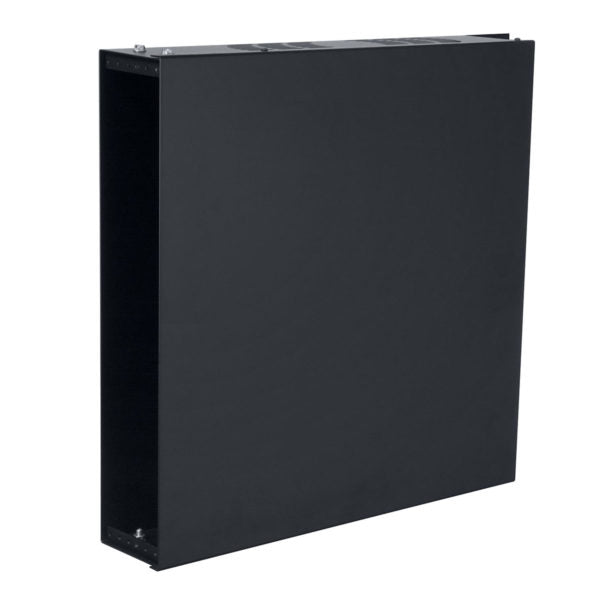

SMR-2: Side-Mount Rack 2U

Low-profile wall-mount design for installations with limited space. It's ideal to mount switches, hubs and similar network equipment. Bi-directional keyhole slots on standard 16 inch centers allow horizontal or vertical positioning, equipment is then added from the side or top, depending on set-up.

SPECIFICATIONS

• Rack Space:  2U
• Measurements:  21.625 in. x 19.307 in. x 3.920 in.
• Usable Depth:  19 in.

FEATURES

• 16-gauge steel construction
• Bi-directional keyhole slots on standard 16 in. mounting centers allows horizontal or vertical orientation
• Adjustable rails tapped 10-32, can be repositioned in three (1.5 in.) depth increments to accommodate equipment or cables.
• Bridge lances on extended rear panel provide attachment points to secure cables
• Top/bottom vents
• Open sides
• Removable front cover secures with screws
• Black powder epoxy finish
• Load Capacity:  50 lbs.

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• RoHS compliant
• Certified U.S. steel
• Made in Missouri, U.S.A.

A&E SPECIFICATIONS

• The wall-mount rack shall be Lowell Model #SMR-2, which shall be 16-gauge certified U.S. steel construction with a smooth black powder epoxy finish. Overall measurements shall be 21.625" x 19.3" x 3.92", which shall provide two rack units of panel space. The rear of the rack shall feature bi-directional keyhole slots on standard 16" mounting cen-ters to facilitate mounting the rack to a wall either vertically or horizontally, allowing top- or side-mounted equipment. The rack shall feature vents on the top and bottom, one pair of 11-gauge steel adjustable rails tapped 10-32, and multiple bridge lances on the extended back panel for cable manage-ment. The rack shall include a removable front cover secured with screws. It shall have a load capacity of 50 lbs.
