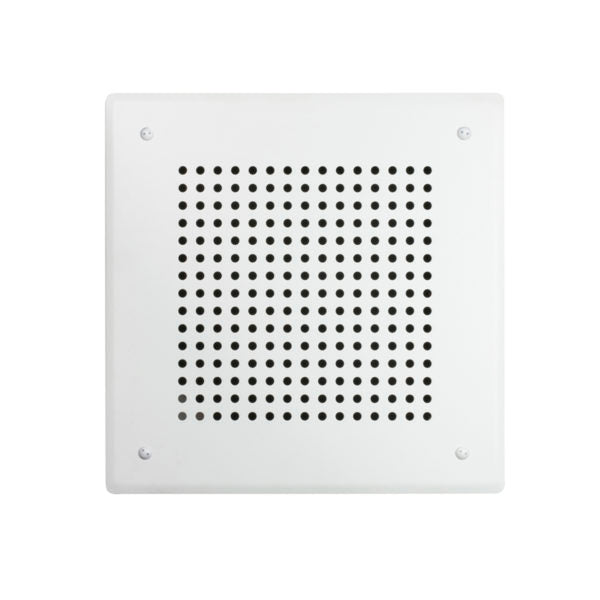

SG-8VP: Vandal-Resistant Grille

A square vandal resistant grille the SG-8VP features a secondary steel barrier screen to protect 8-in drivers from damage in areas where vandalism is a concern

SPECIFICATIONS

• Style:  Screw-mount
• Material:  14-gauge steel with 22-gauge steel barrier screen
• Finish:  White
• Size:  11.438 in. square
• Mounting Projection:  0.125 in.
• Mounting Provisions:  4 tamper-resistant screws, 4 studs

CERTIFICATION & COMPLIANCE

• Made in the U.S.A.
• Certified U.S. steel

A&E SPECIFICATIONS

• The square vandal-resistant grille for 8” speakers or Unihorn Model LUH-15T shall be Lowell Model SG-8VP. It shall be heavy duty 14-gauge punched steel reinforced with a peripheral flange. It shall include a 22-gauge steel barrier screen, painted black, and a chipboard gasket to protect the driver from damage. The grille shall be 11.438” SQ with a shallow mounting projection of 0.125”. It shall have 8-32 x 1” welded studs with nuts for mounting specified 8” EIA speaker. Each grille shall also have four 0.218” holes on a 9.062” centers for mounting specified recessed or surface backbox using tamper-resistant white screws provided. Grille shall be finished in white powder epoxy.
