SPECIFICATIONS

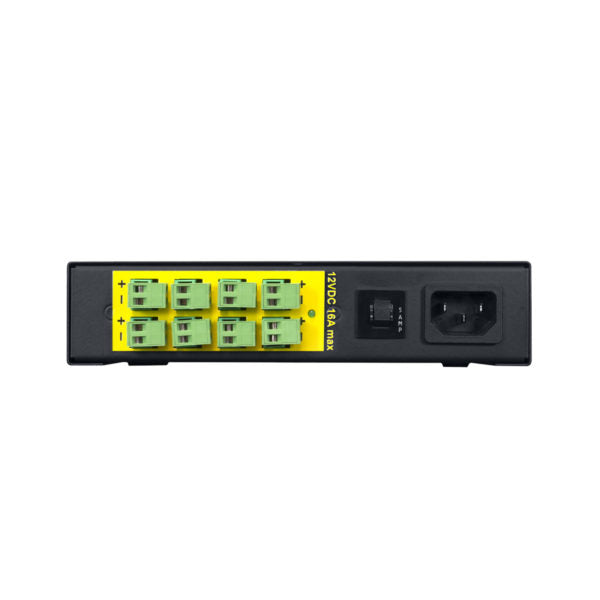

• Features eight outputs (12VDC 16A)
• Each output is protected by PTC fuse with auto reset for overload protection.
• LED indicates power status (active/inactive).
• Detachable voltage output terminals (8) with quick-install screw terminal connectors.
• Universal Input: 100-240VAC, 50/60Hz
• 6 ft. power cord (C13 to NEMA 5-15P plug)
• Chassis: 7 in. x 6 in. x 1.625 in.
• Brackets for horizontal or vertical installation

COMPLIANCE & CERTIFICATION

• ETL Listed (UL60065)
• Made in the U.S.A. with domestic and international components

A&E SPECIFICATIONS

• Power distribution shall be Lowell model DCP-12, which shall feature a 7" x 6" x 1.625" steel chassis with black finish and mounting brackets for vertical or horizontal installation. The unit shall feature 8 voltage outputs, which shall be Euro style output terminals (12VDC, 16A total). Each output shall be protected by an auto-reset PTC fuse. The unit shall feature universal input (100-240VAC 50/60Hz) with C14 power inlet compatible with international standards. It shall include a 6 ft. power cord (C13 to NEMA 5-15) and variable speed fan. The power distribution shall be made in the U.S.A. with global components.
