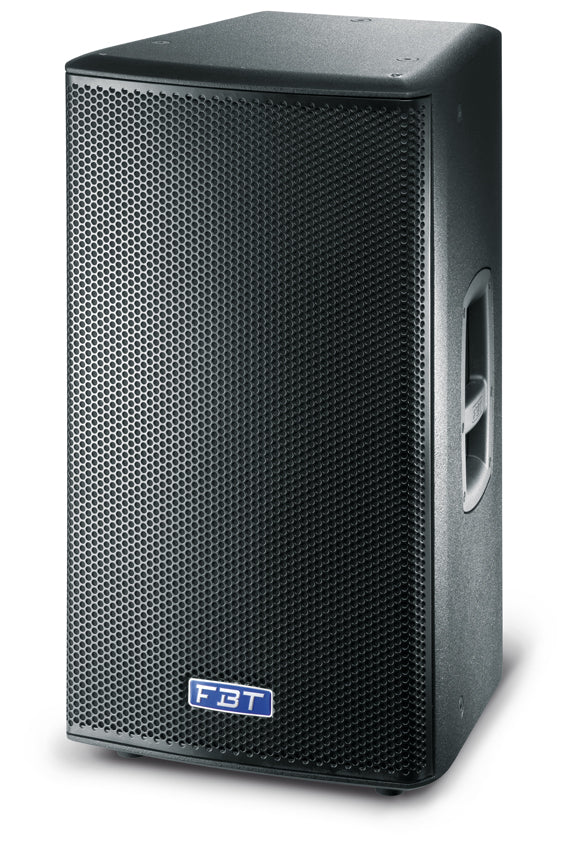

FBT MITUS 114 A

FBT MITUS 114 A

$1,519.00
$1,519.00 $3,279.00
Skip to product information
FBT MITUS 114 A
  • FBT MITUS 114 A
  • FBT MITUS 114 A
FBT MITUS 114 A

FBT MITUS 114 A

$1,519.00
$1,519.00 $3,279.00


PROCESSED ACTIVE SPEAKER 600W + 300W RMS - 135.5DB SPL


Processed Active Speaker

600W + 300W RMS – 135.5dB SPL



  • 360 mm (14”) B&C neodymium magnet woofer with 75 mm (3”) voice coil
  • 36 mm (1.4”) exit B&C neodymium magnet HF driver with 64 mm (2.5’’) voice coil
  • Class D built-in amplifiers, 600WRMS to the LF and 300WRMS to the HF, switch mode power supply
  • Frequency response from 46Hz to 20KHz
  • 70°H x 50°V rotatable HF horn
  • 35 mm (1.38’’) speaker stand socket
  • Very lightweight, only 24.9 kg / 54.8 lb
  • 2-way, bi-amplified, bass-reflex design
  • Switch mode power supply
  • DSP with 8 EQ presets
  • Birch plywood enclosure, scratch resistant black paint finish
  • Control panel with XLR input and link, volume, presets, HP filter, ground-lift
  • 12 x M10 fl y points and two FBT design aluminum handles
  • Ideal for live sound reinforcement applications and permanent installations



Code: 37679
Configuration: 2 way
Built-in amplifier LF/HF: 600/300 W RMS
Built-in amplifier peak LF/HF: 1200/600 W
Frequency response: 46Hz - 20KHz -6dB
Low Frequency woofer: 1x14 - 3 coil neodymium inch
High Frequency driver: 1x1.4 - 2.5 coil inch
Maximum SPL cont/peak: 127.5/135.5 dB
Dispersion: 70°x50° HxV
Input impedance: 22 Kohm
Crossover Frequency: 1.4 KHz
AC Power requirements: 640 VA
Input connector: XLR with loop
Power cord: 5 m/ft
Net Dimension (WxHxD): 380x705x380 - 15x27.7x15 mm/inch
Net Weight: 24.9/54.8 Kg/lb
Transport Dimension (WxHxD): 480x770x455 - 18.1x30.3x17.9 mm/inch
Transport Weight: 26.9/59.3 Kg/lb
